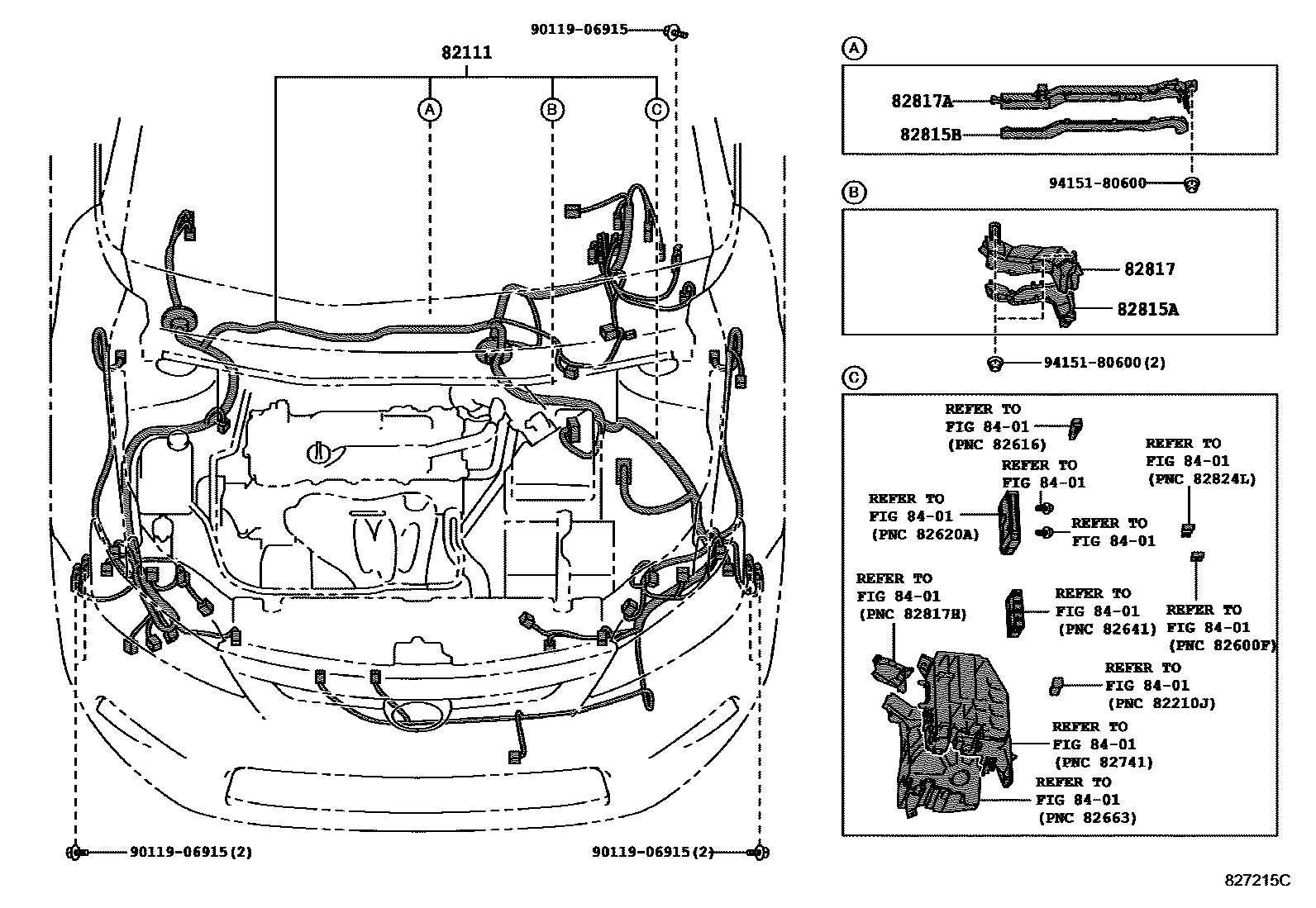

82111WIRE, ENGINE ROOM MAIN

main82111-21730iAGT20..6FC..(GCC,GEN)201008-201305

main82111-21740iAGT20..CHI201102-201306

main82111-21741iAGT20201305-201607

main82111-21750iAGT20..6F201008-201304

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12130iAGT20201008-201607

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12140iAGT20201008-201607

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12A90iAGT20201008-201607

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12B00iAGT20201008-201607

8401

9011906915

main90119-06915

9415180600

main94151-80600

8 parts on this diagram · 8 diagrams in section
