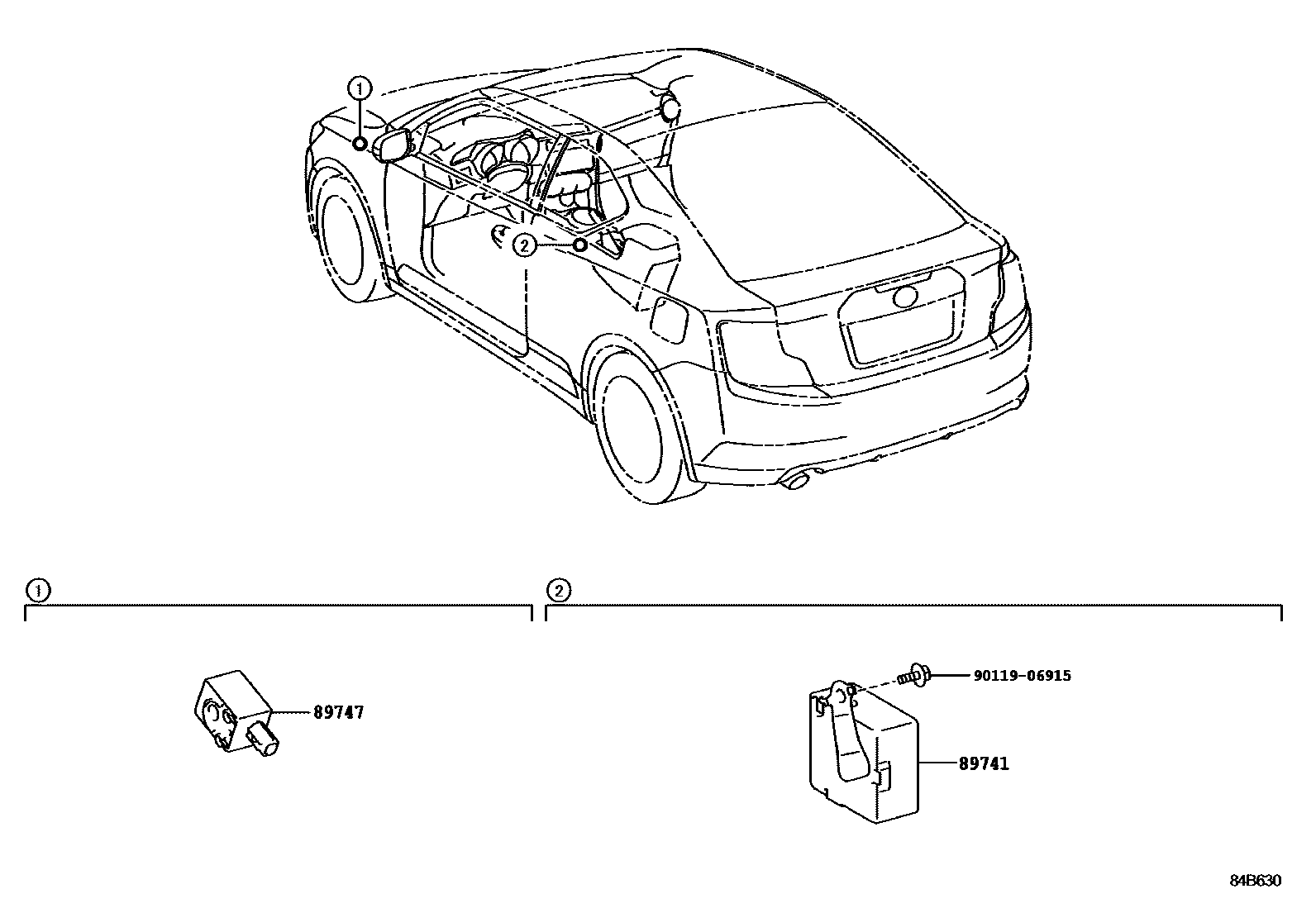

Toyota ZELAS — WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89740-21021iAGT20..GCC,GEN201305-201607

main89740-21040iAGT20..CHI201102-201405

main89740-21080iAGT20..CHI201106-201107

main89741-21050iAGT20..GCC,GEN201008-201204

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

sub89741-21051

main89741-21051iAGT20..GCC,GEN201205-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

sub89741-21052

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAGT20201008-201607

9011906915

main90119-06915

3 parts on this diagram · 2 diagrams in section
