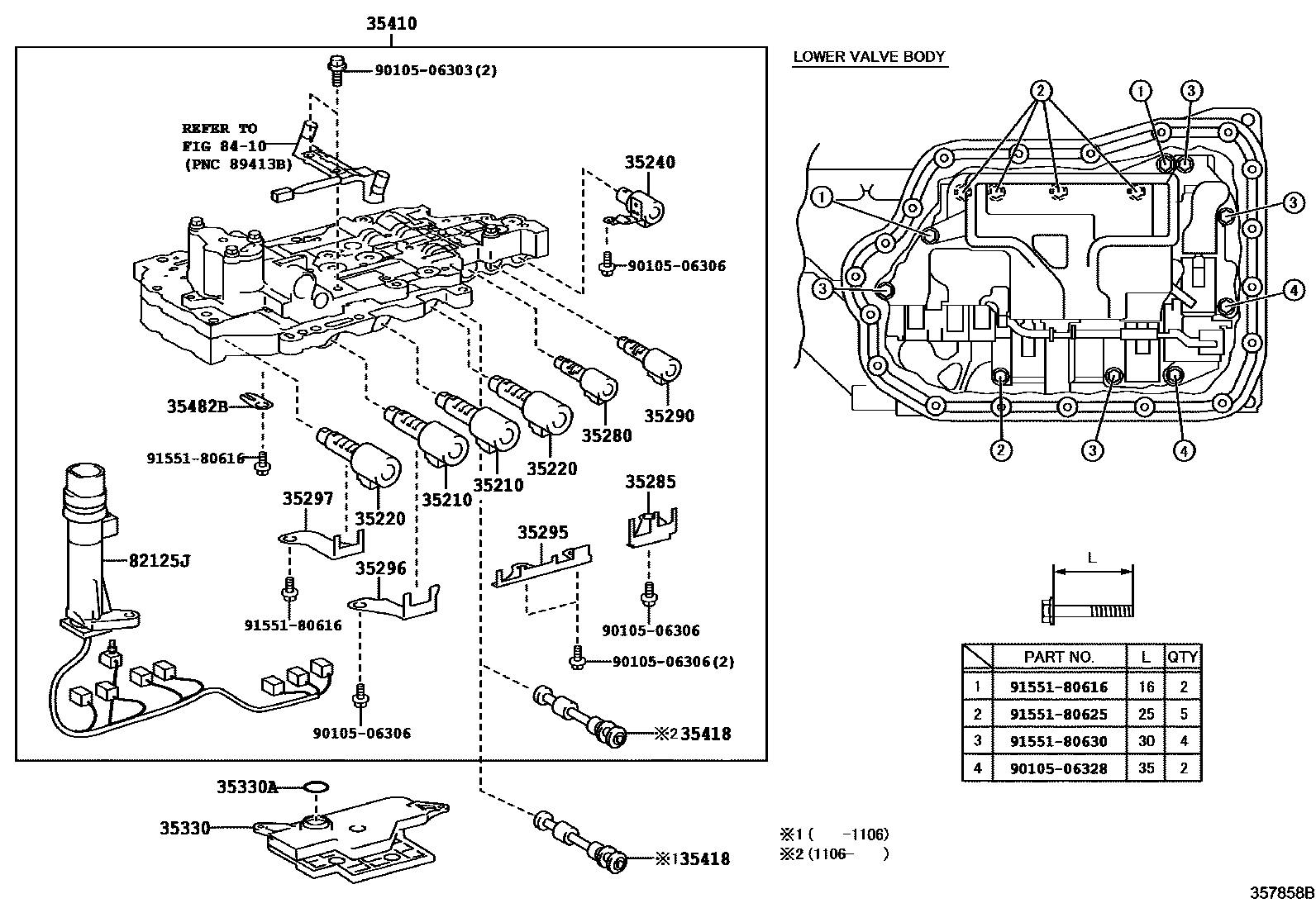

Toyota ZELAS — VALVE BODY & OIL STRAINER (ATM)
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
*349
*335
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35295PLATE, SOLENOID LOCK, NO.2
*349
*335
35296PLATE, SOLENOID LOCK, NO.3
*349
*335
35297PLATE, SOLENOID LOCK, NO.4
*349
*335
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35418VALVE, MANUAL
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
sub82125-73011
8410
9010506303
main90105-06303
9010506306
main90105-06306
9010506328
main90105-06328
9155180616
main91551-80616
9155180625
main91551-80625
9155180630
main91551-80630
22 parts on this diagram · 2 diagrams in section
