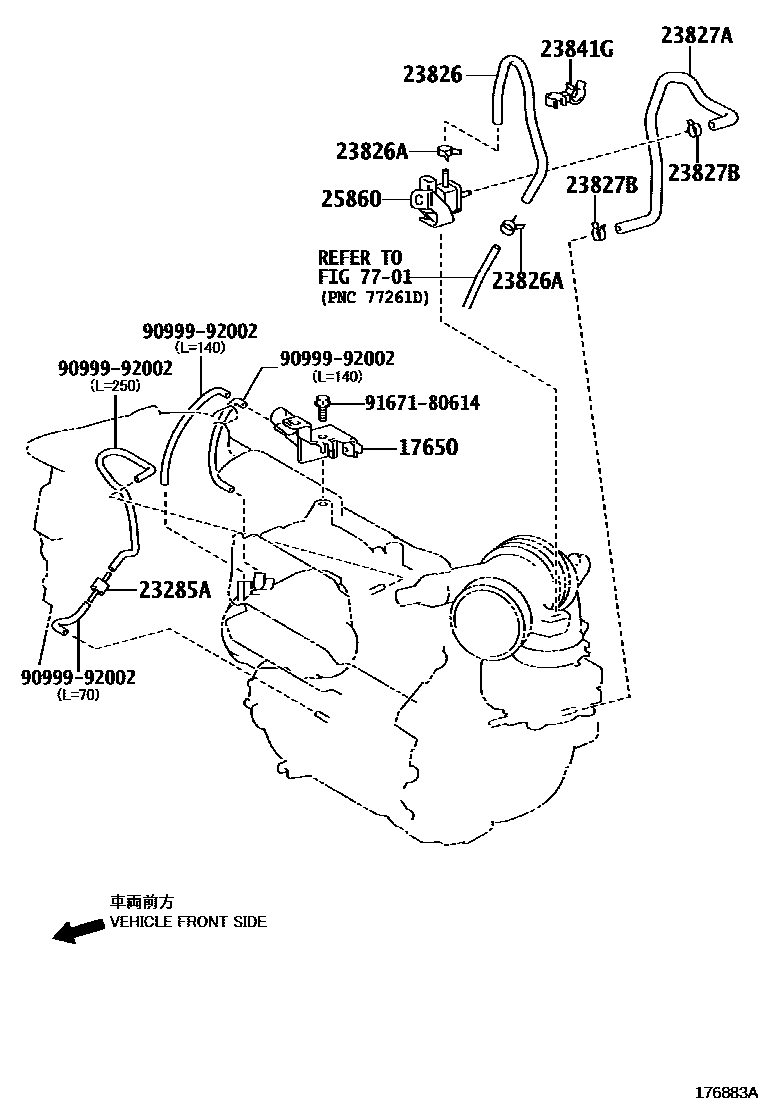

Toyota ZELAS — VACUUM PIPING

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i2ARFE..AGT20201008-201607

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..AGT20201008-201607

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-36040i2ARFE..AGT20201208-201607

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100i2ARFE..AGT20201208-201607

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-36060i2ARFE..AGT20201008-201607

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004i2ARFE..AGT20201008-201607

23841GCLAMP, FUEL HOSE

main23841-28050i2ARFE..AGT20201008-201607

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-36040i2ARFE..AGT20201008-201607

7701

9099992002

main90999-92002

9167180614

main91671-80614

11 parts on this diagram · 1 diagram in section
