83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAGT20201008-201607

DENSO

main83530-60020iAGT20201008-201607

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAGT20..6F201008-201206

sub84210-52050

main84210-52050iAGT20..6F201206-201304

84540SWITCH ASSY, NEUTRAL START

main84540-33010iAGT20..6FC201008-201607

89465SENSOR, OXYGEN

main89465-21050iAGT20201305-201607

main89465-21060iAGT20201008-201306

89467BSENSOR, AIR FUEL RATIO

main89467-21020iAGT20201008-201607

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-21020iAGT20..CHI201306-201405

main89530-21030iAGT20..GCC,GEN201305-201607

main89530-21060iAGT20..CHI201102-201306

main89530-21070iAGT20..6FC201008-201101

main89530-21090iAGT20..6FC..(GCC,GEN)201101-201305

89615SENSOR, KNOCK CONTROL

main89615-20090iAGT20201008-201607

8271542C70BRACKET,WIRING HARNESS CLAMP

main82715-42C70

8761628020CLAMP, COOLING UNIT CASE

main87616-28020

9043018008

main90430-18008

9155180835

main91551-80835

9155380825

main91553-80825

9165140620

main91651-40620

9167180612

main91671-80612

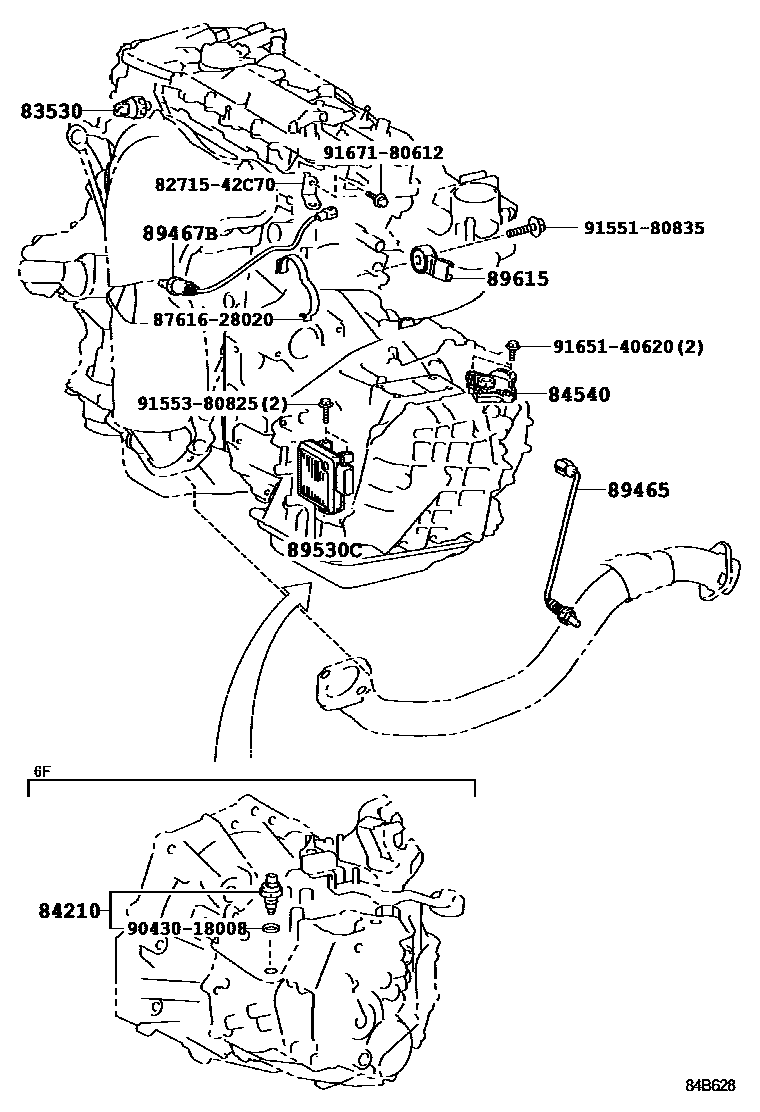

14 parts on this diagram · 6 diagrams in section
