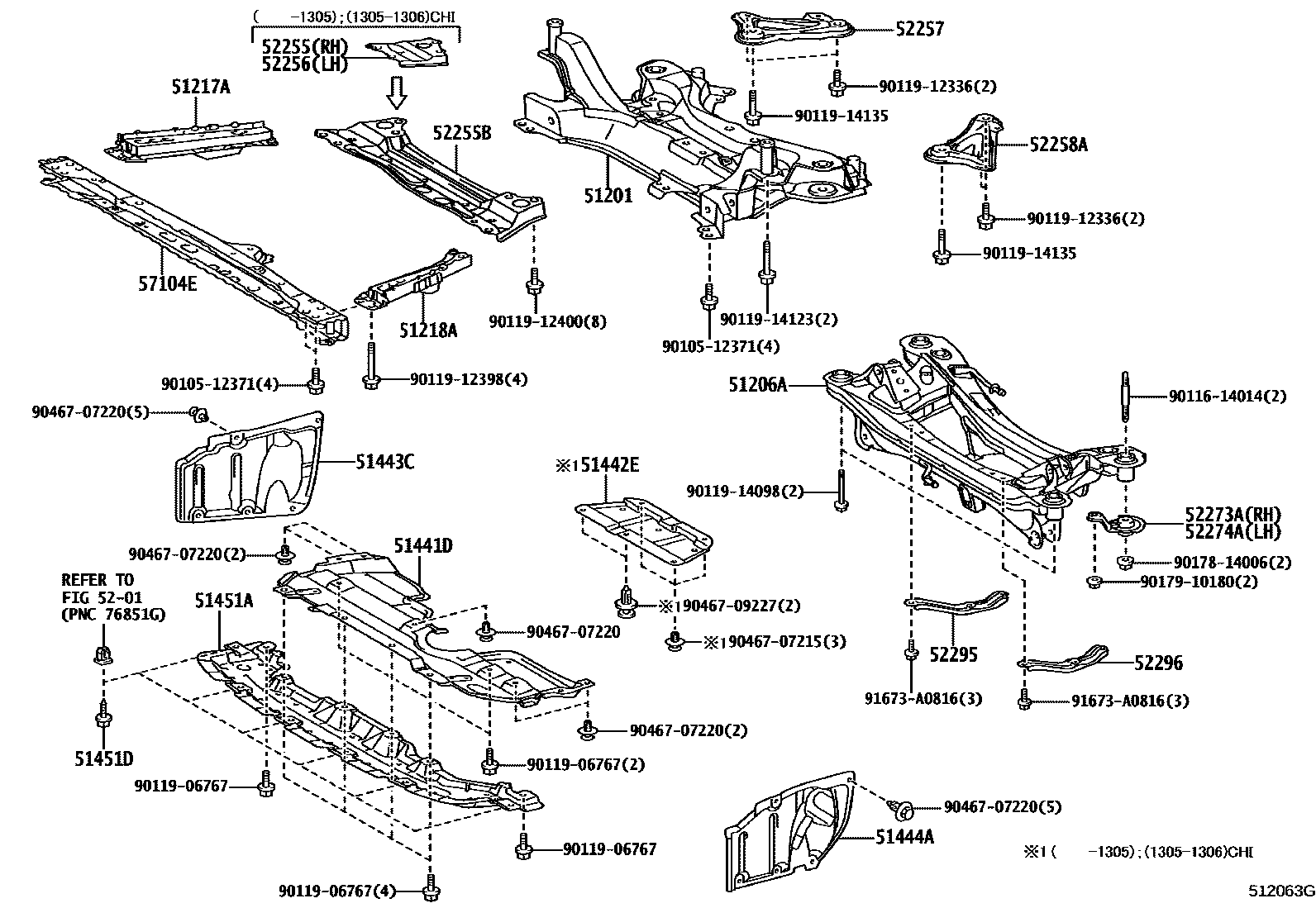

Toyota ZELAS — SUSPENSION CROSSMEMBER & UNDER COVER
51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51441DCOVER, ENGINE UNDER
51442ECOVER, ENGINE UNDER, NO.2
51443CCOVER, ENGINE UNDER, REAR RH
51444ACOVER, ENGINE UNDER, REAR LH
51451ACOVER, ENGINE UNDER, CENTER
51451DSCREW, NO.1
5201
52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255BBRACE, FRONT SUSPENSION MEMBER
52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
57104EMEMBER SUB-ASSY, FRONT CROSS
9010512371
main90105-12371
9011614014
main90116-14014
9011906767
main90119-06767
9011912336
main90119-12336
9011912398
main90119-12398
9011912400
main90119-12400
9011914098
main90119-14098
9011914123
main90119-14123
9011914135
main90119-14135
9017814006
main90178-14006
9017910180
main90179-10180
9046707215
main90467-07215
9046707220
main90467-07220
9046709227
main90467-09227
91673A0816
main91673-A0816
36 parts on this diagram · 1 diagram in section
