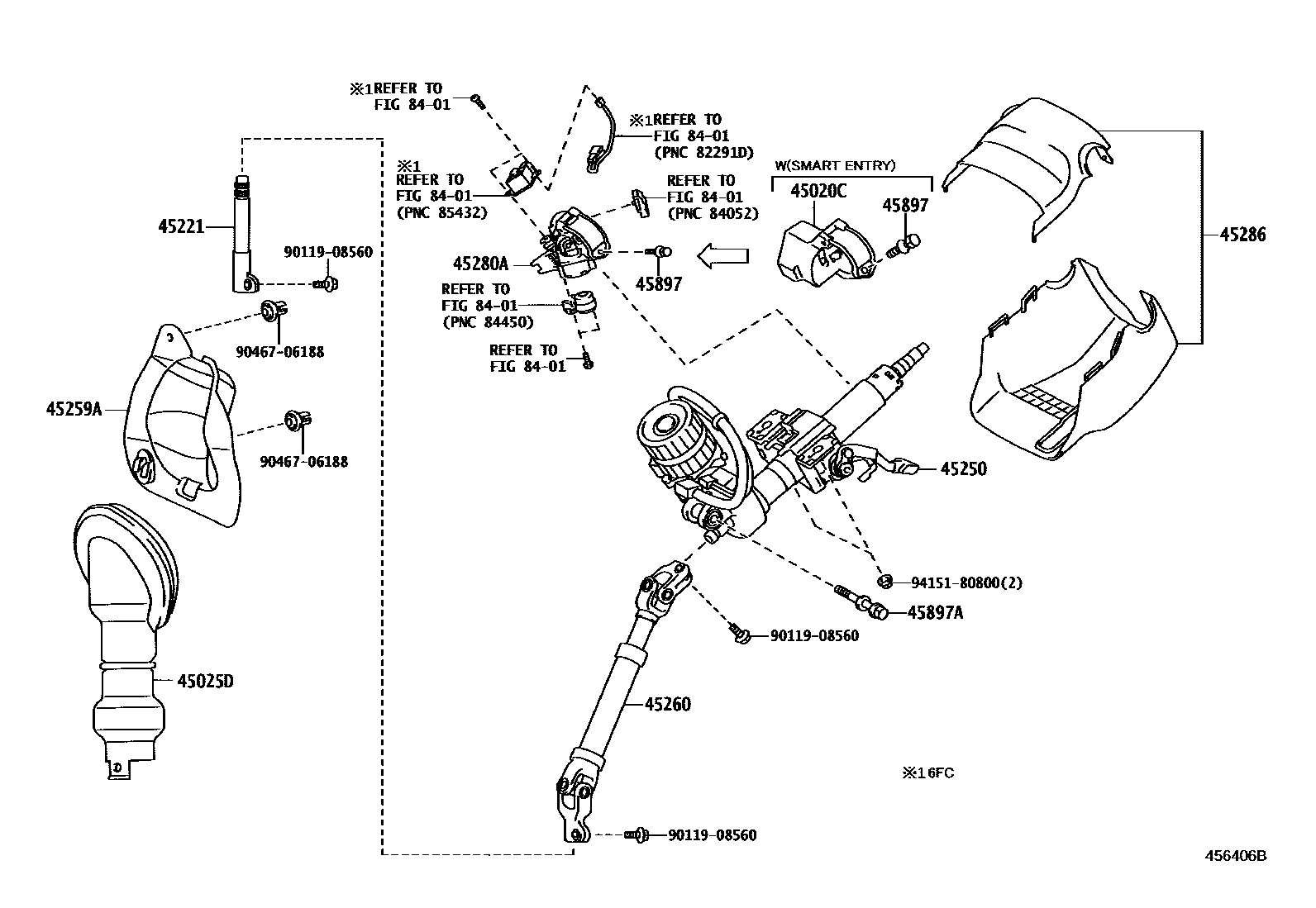

Toyota ZELAS — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-68040iAGT20201102-201607

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-21030iAGT20201008-201607

45221SHAFT, STEERING INTERMEDIATE

main45221-21010iAGT20201008-201607

45250COLUMN ASSY, STEERING

main45250-21211iAGT20201102-201607

main45250-21230iAGT20201008-201009

sub45250-21231

main45250-21231iAGT20..GCC,GEN201009-201305

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-21020iAGT20201008-201607

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-21060iAGT20201008-201407

sub45260-21061

main45260-21061iAGT20201408-201607

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42130iAGT20..6FC..(GCC,GEN)201008-201305

main45280-42140iAGT20..6F201008-201304

45286COVER, STEERING COLUMN

main45286-12986-C0iAGT20..6F201008-201305

BLACK,TRIM1#

sub45286-12986

main45286-12993-C0iAGT20201102-201607

BLACK,TRIM1#

sub45286-12993

45897BOLT, STEERING LOCK SET

main45897-12020iAGT20201008-201607

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iAGT20201008-201211

main90119-10980iAGT20201212-201607

8401

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
