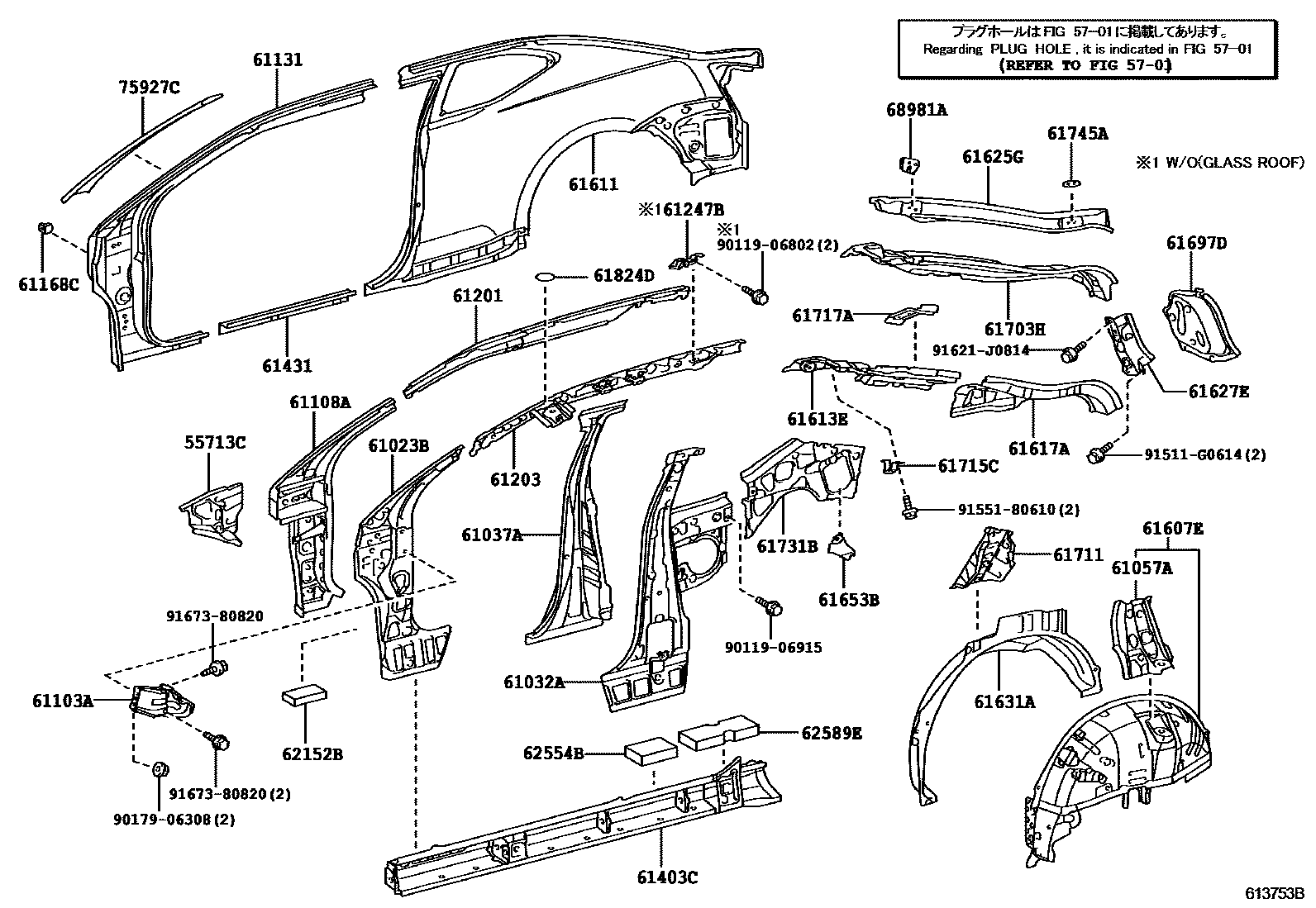

Toyota ZELAS — SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61032APILLAR SUB-ASSY, NO.1 INNER, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61057AEXTENSION SUB-ASSY, QUARTER LOCK PILLAR
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61168CBRACKET, NO.6 PILLAR OUTER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61431PANEL, ROCKER, OUTER REAR RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61613EPANEL, QUARTER, INNER RH
61617APANEL, QUARTER INNER, REAR RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61653BBRACKET, DECK SIDE TRIM
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61715CBRACKET, ROOF SIDE, RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731BPANEL, ROOF SIDE, INNER RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61824DPLATE, NOISE CONTROL, NO.1
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
62589EPAD, QUARTER PILLAR
68981ARETAINER, BACK DOOR STAY, RH
75927CTAPE, BLACK OUT, NO.4 RH
9011906802
main90119-06802
9011906915
main90119-06915
9017906308
main90179-06308
91511G0614
main91511-G0614
9155180610
main91551-80610
91621J0814
main91621-J0814
9167380820
main91673-80820
43 parts on this diagram · 2 diagrams in section
