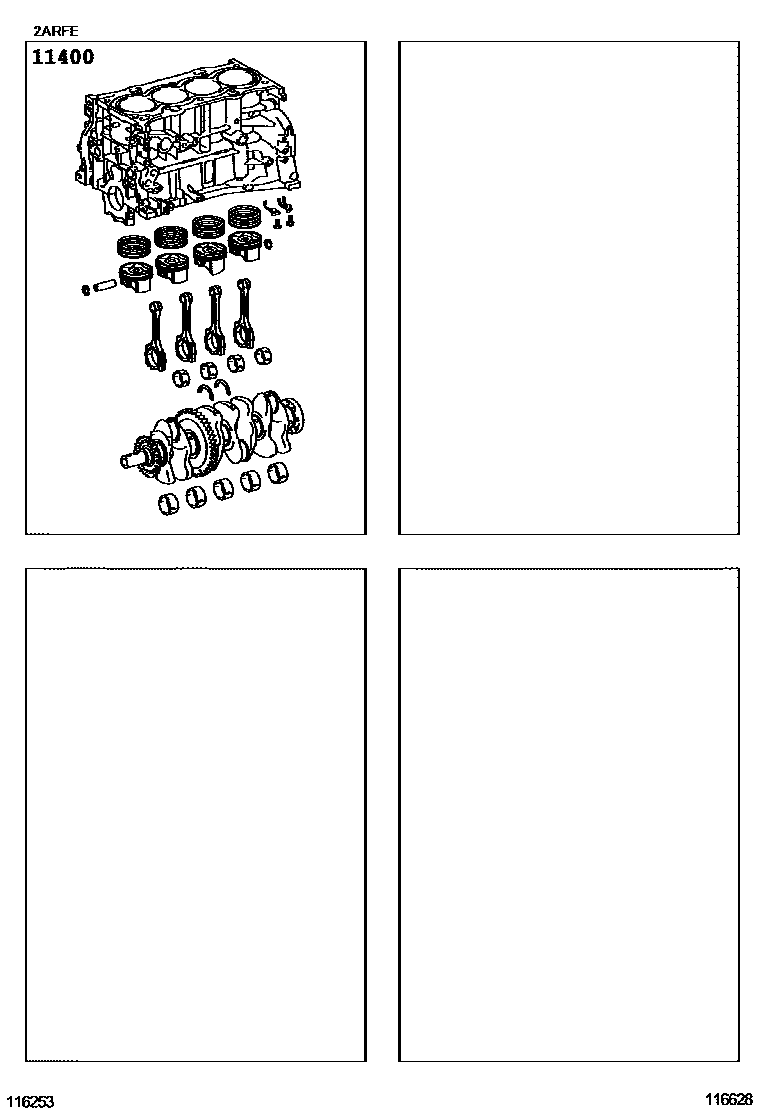

Toyota ZELAS — SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-36060i201008-201405

main11400-36080i201405-201607

1 parts on this diagram · 1 diagram in section
