Toyota ZELAS — SEAT BELT & CHILD RESTRAINT SEAT

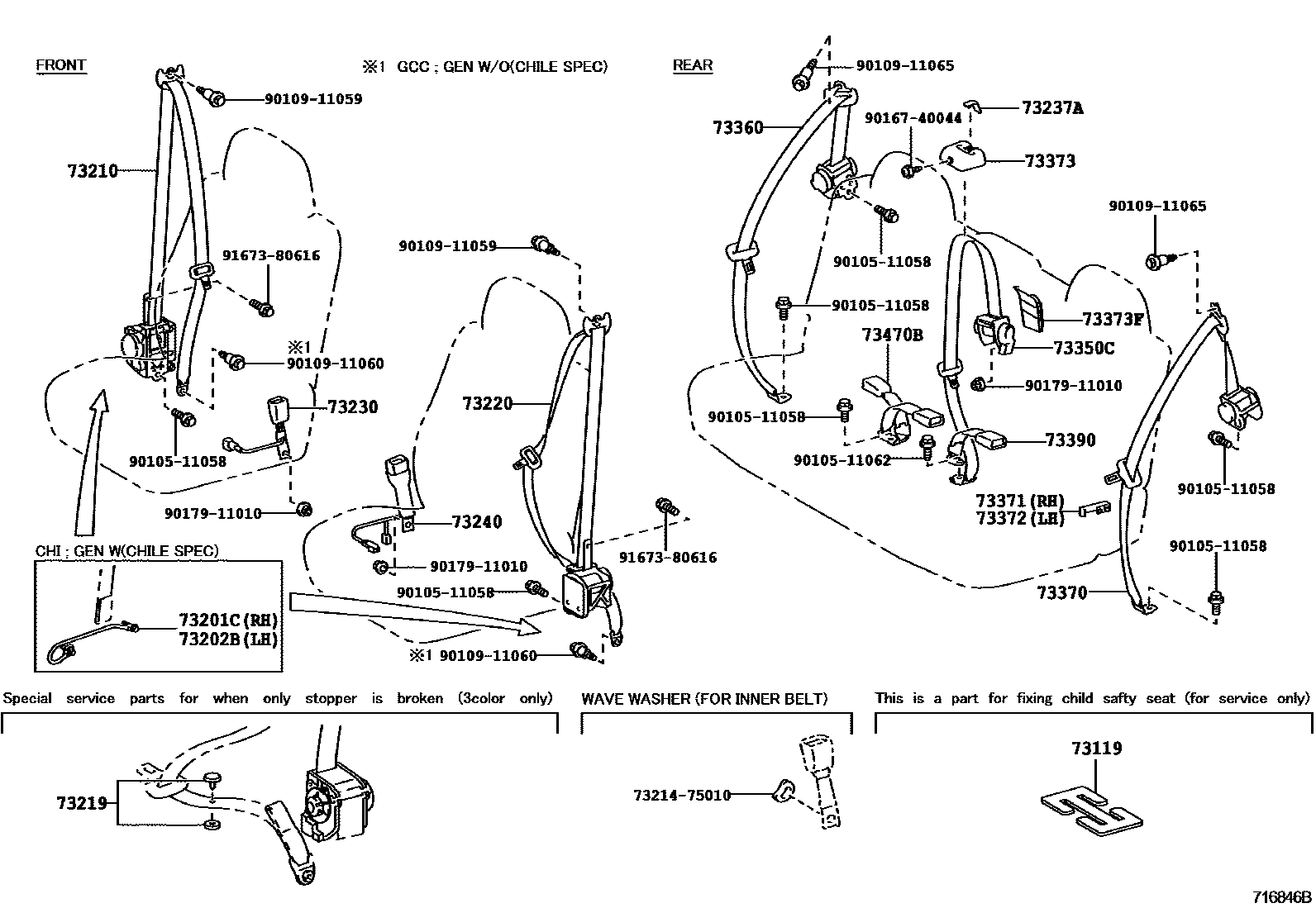

Parts diagram
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i201008-201607
73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH
main73201-21010i201102-201405
73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH
main73202-21010i201102-201405
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-21160-B0i201102-201108
DK.GRAY,TRIM1#
sub73210-21161
main73210-21161-B0i201109-201405
DK.GRAY,TRIM1#
main73210-21161-B0i201109-201201
CHILE SPEC,DK.GRAY,TRIM1#
main73210-21161-B1i201201-201212
CHILE SPEC,BLACK,TRIM1#
main73210-21161-B1i201201-201212
BLACK,TRIM1#
main73210-21170-B0i201008-201607
DK.GRAY,TRIM1#
main73210-21170-B1i201201-201212
BLACK,TRIM1#
73219STOPPER, TONGUE PLATE
main73219-33010i201008-201607
BLACK
main73219-33020i201008-201607
GRAY
main73219-33030i201008-201607
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-21110-B0i201008-201607
DK.GRAY,TRIM1#
main73220-21110-B1i201201-201212
BLACK,TRIM1#
main73220-21120-B0i201102-201108
DK.GRAY,TRIM1#
sub73220-21121
main73220-21121-B0i201109-201405
DK.GRAY,TRIM1#
main73220-21121-B0i201109-201201
CHILE SPEC,DK.GRAY,TRIM1#
main73220-21121-B1i201201-201212
CHILE SPEC,BLACK,TRIM1#
main73220-21121-B1i201201-201212
BLACK,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-21110-B0i201008-201607
DK.GRAY,TRIM1#
73237ACOVER, SHOULDER BELT ANCHOR
main73237-21030-B0i201008-201607
DK.GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-21030-B0i201008-201607
DK.GRAY,TRIM1#
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-21030-C0i201008-201011
DK.GRAY,TRIM1#
sub73350-21031
main73350-21031-C0i201011-201607
BLACK,TRIM1#
main73350-21031-C1i201201-201212
BLACK,TRIM1#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-21100-B0i201102-201306
DK.GRAY,TRIM1#
main73360-21100-B1i201201-201212
BLACK,TRIM1#
main73360-21110-B0i201008-201607
DK.GRAY,TRIM1#
main73360-21110-B1i201201-201212
BLACK,TRIM1#
main73360-21130-B0i201306-201405
DK.GRAY,TRIM1#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-21100-B0i201102-201306
DK.GRAY,TRIM1#
main73370-21100-B1i201201-201212
BLACK,TRIM1#
main73370-21110-B0i201008-201607
DK.GRAY,TRIM1#
main73370-21110-B1i201201-201212
BLACK,TRIM1#
main73370-21130-B0i201306-201405
DK.GRAY,TRIM1#
73371HANGER, REAR SEAT SHOULDER BELT, RH
main73371-16050-B9i201008-201607
DK.GRAY,TRIM1#
sub73371-16050
sub73371-52010
73372HANGER, REAR SEAT SHOULDER BELT, LH
main73371-16050-B9i201008-201607
DK.GRAY,TRIM1#
sub73371-16050
sub73371-52010
73373COVER, REAR SEAT SHOULDER BELT
main73373-21050-B0i201008-201607
DK.GRAY,TRIM1#
73373FCOVER, REAR SEAT SHOULDER BELT HOLE
main73373-21060i201008-201607
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73390-21010-B1i201008-201607
DK.GRAY/BLACK,TRIM1#
73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH
main73470-21030-B0i201008-201607
DK.GRAY,TRIM1#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010511058
main90105-11058
9010511062
main90105-11062
9010911059
main90109-11059
9010911060
main90109-11060
9010911065
main90109-11065
9016740044
main90167-40044
9017911010
main90179-11010
9167380616
main91673-80616

27 parts on this diagram · 1 diagram in section
