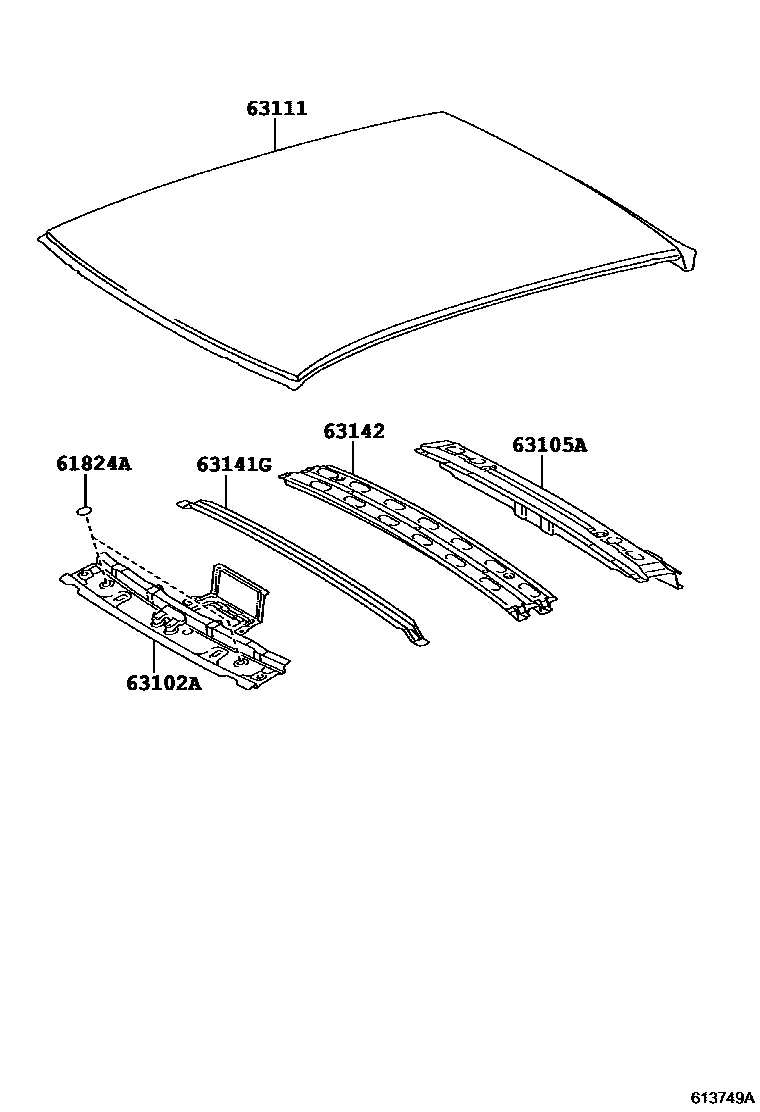

Toyota ZELAS — ROOF PANEL & BACK WINDOW GLASS

0001 1W/O(GLASS ROOF) 0002 1

61824APLATE, NOISE CONTROL, NO.1

main61824-12050iAGT20..GCC201010-201607

main61824-12050iAGT20..CHI,GEN201008-201405

GLASS ROOF-WITHOUT

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-21050iAGT20..CHI,GEN201008-201405

main63102-21060iAGT20..GCC201010-201607

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-21060iAGT20..CHI,GEN201008-201405

main63105-21070iAGT20..GCC201010-201607

63111PANEL, ROOF

main63111-21170iAGT20..GCC201010-201607

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-21080iAGT20..GCC201010-201607

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-21040iAGT20..GCC201010-201607

6 parts on this diagram · 2 diagrams in section
