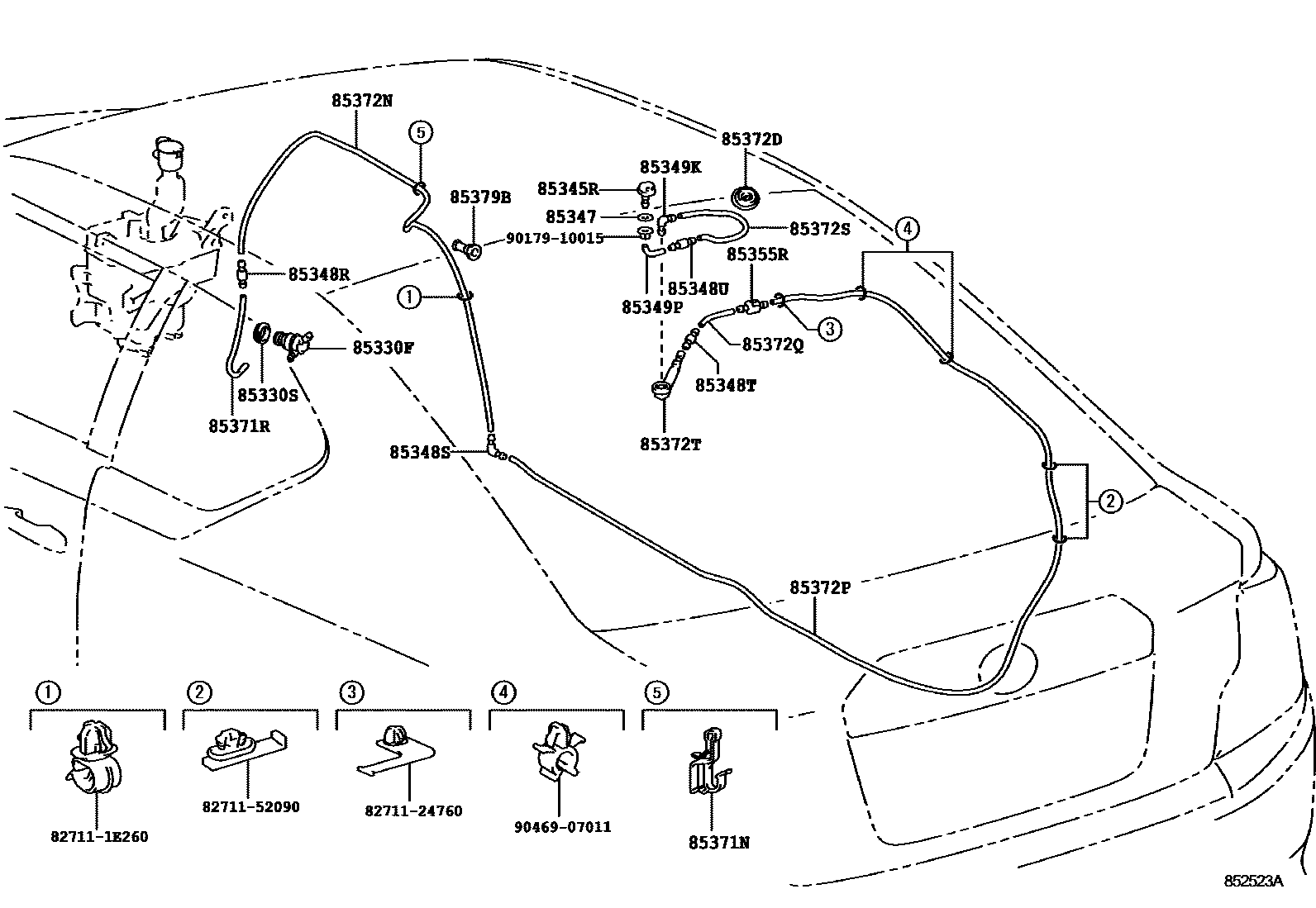

Toyota ZELAS — REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
sub85391-47040
85347PACKING, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85355RVALVE, REAR WASHER HOSE
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=215)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=1460)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3300
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=140)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1000(*H,L=280)
85372TGROMMET, WASHER
85379BGROMMET, WASHER, A
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24760
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
9017910015
main90179-10015
9046907011
main90469-07011
25 parts on this diagram · 1 diagram in section
