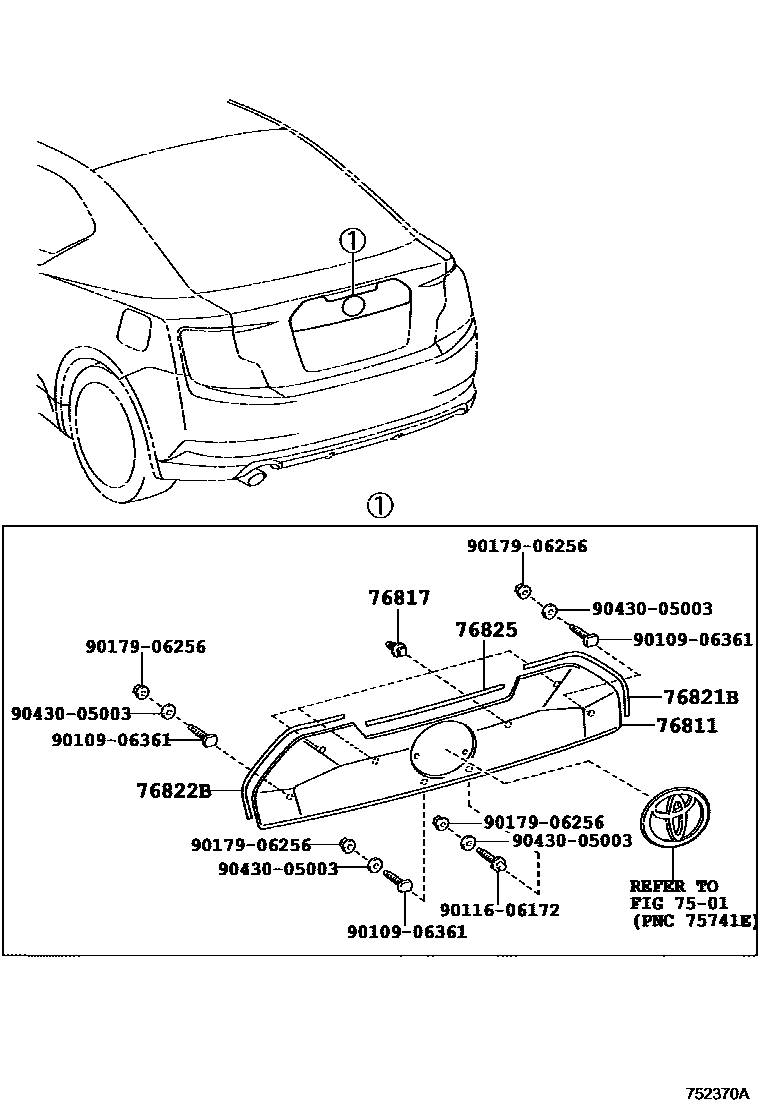

Toyota ZELAS — REAR MOULDING

7501

76811GARNISH, BACK DOOR, OUTSIDE

main76811-21100-A0iAGT20201008-201405

SUPER WHITE 2,040

main76811-21100-A1iAGT20201405-201607

WHITE PEARL CS.,070

main76811-21100-B0iAGT20201008-201405

SILVER ME.,1F7

main76811-21100-B1iAGT20201008-201607

GRAY ME.,1G3

main76811-21100-B2iAGT20..GCC,GEN201008-201607

CEMENT GRAY ME.,1H5

main76811-21100-B3iAGT20..CHI201102-201205

GRAY ME.,1G2

main76811-21100-B5iAGT20201405-201607

DK. STEEL MC.,1H2

main76811-21100-C0iAGT20201008-201607

BLACK,202

main76811-21100-D0iAGT20201102-201607

SUPER RED 5,3P0

main76811-21100-D1iAGT20..GCC,GEN201008-201305

BLACKISH RED MC.,3R0

main76811-21100-J1iAGT20201008-201306

DK.BLUE MC.,8S6

main76811-21100-J2iAGT20201305-201607

BLUE ME.,8T7

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75868-60020iAGT20201008-201607

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-21060iAGT20201008-201607

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-21010iAGT20201008-201607

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-21020iAGT20201008-201607

9010906361

main90109-06361

9011606172

main90116-06172

9017906256

main90179-06256

9043005003

main90430-05003

10 parts on this diagram · 1 diagram in section
