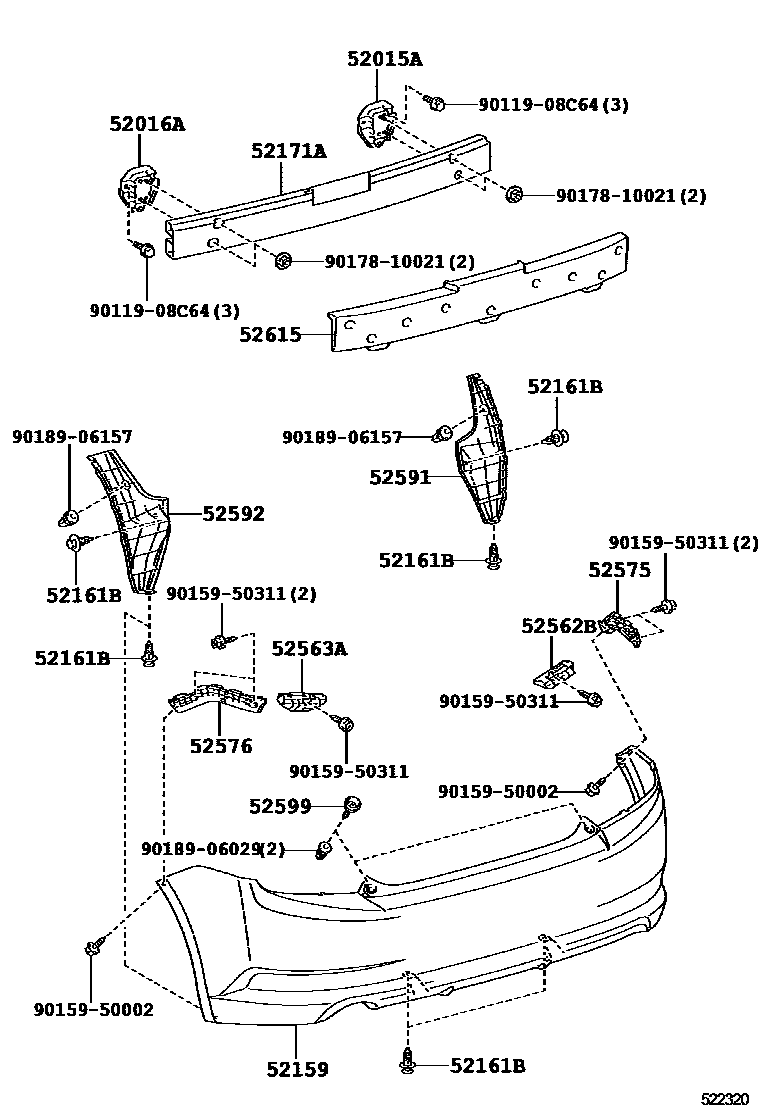

Toyota ZELAS — REAR BUMPER & BUMPER STAY

0001 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-21010iAGT20201008-201607

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-21010iAGT20201008-201607

52159COVER, REAR BUMPER

main52159-21913iAGT20201008-201306

PAINT REQ.

main52159-21914iAGT20201305-201607

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iAGT20201008-201607

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-21030iAGT20201008-201306

main52023-21050iAGT20201305-201607

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-21010iAGT20201008-201306

main52562-21020iAGT20201305-201607

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-21010iAGT20201008-201306

main52563-21020iAGT20201305-201607

52575RETAINER, REAR BUMPER SIDE, RH

main52575-21040iAGT20201008-201607

52576RETAINER, REAR BUMPER SIDE, LH

main52576-21040iAGT20201008-201607

52591SEAL, REAR BUMPER SIDE, RH

main52591-21050iAGT20201008-201607

52592SEAL, REAR BUMPER SIDE, LH

main52592-21050iAGT20201008-201607

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iAGT20201008-201607

52615ABSORBER, REAR BUMPER ENERGY

main52615-21010iAGT20201008-201306

main52615-21030iAGT20201305-201607

9011908C64

main90119-08C64

9015950002

main90159-50002

9015950311

main90159-50311

9017810021

main90178-10021

9018906029

main90189-06029

9018906157

main90189-06157

19 parts on this diagram · 2 diagrams in section
