Toyota ZELAS — RADIATOR GRILLE

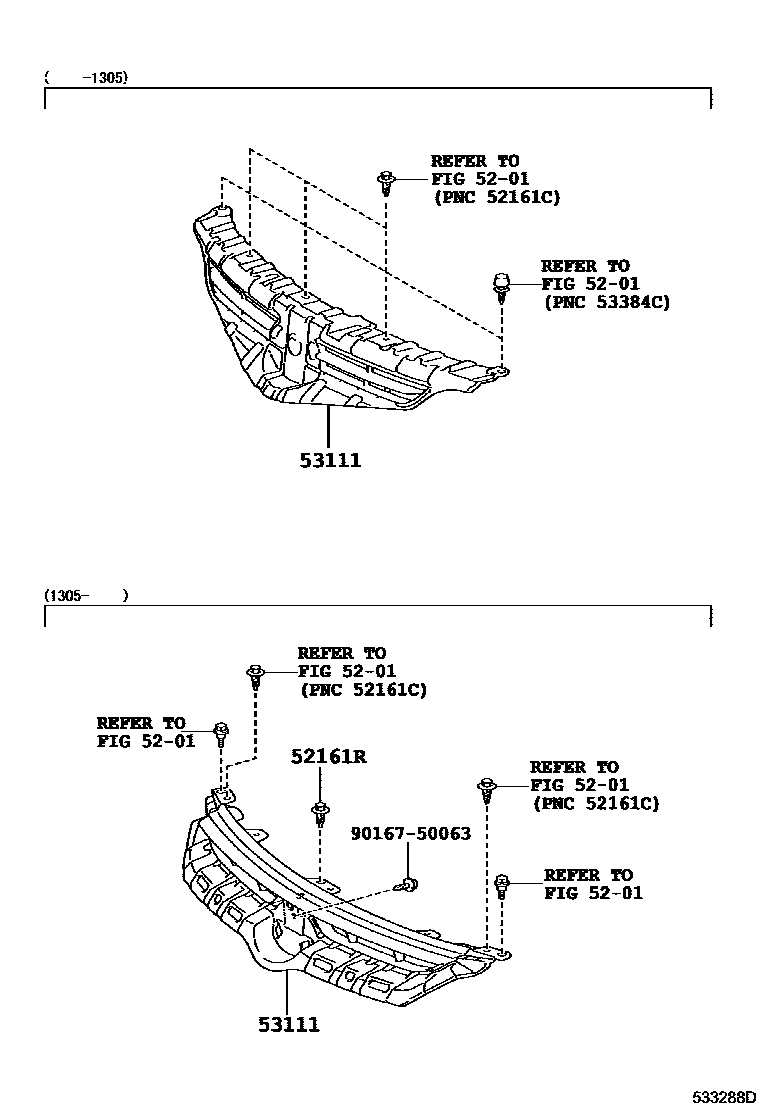

Parts diagram
5201
52161RPIECE, FRONT BUMPER
main52161-16010i201305-201607
sub52161-0K040
53111GRILLE, RADIATOR
main53111-21180i201008-201306
NO PAINT REQ.
main53111-21190i201305-201607
NO PAINT REQ.
9016750063
main90167-50063

4 parts on this diagram · 1 diagram in section
