Toyota ZELAS — PARTIAL ENGINE ASSEMBLY

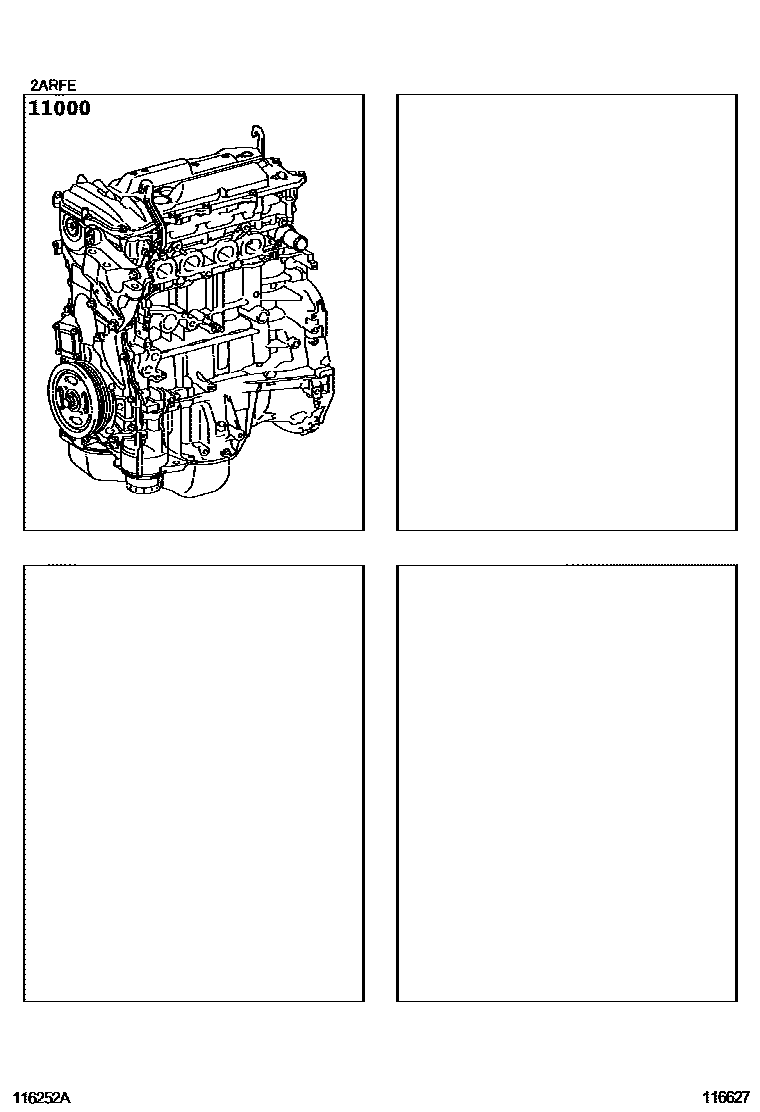

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-36300i201008-201110

main19000-36380i201110-201201

main19000-36381i201201-201405

main19000-36400i201405-201607

1 parts on this diagram · 1 diagram in section
