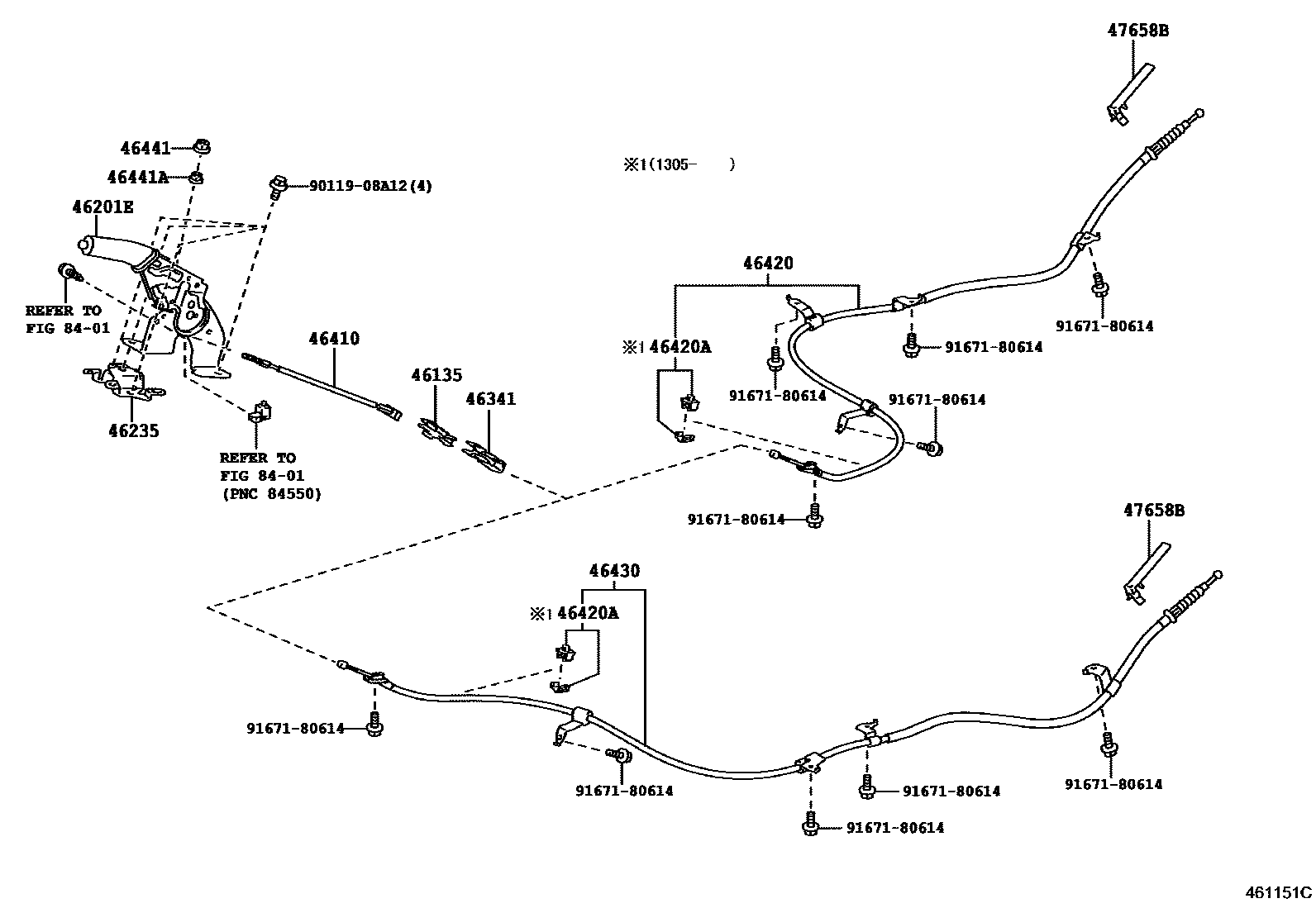

Toyota ZELAS — PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iAGT20201008-201607

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-21030-C0iAGT20201008-201306

BLACK,TRIM1#

main46201-21040-C0iAGT20201305-201607

BLACK,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-12010iAGT20201008-201607

46341EQUALIZER, PARKING BRAKE

main46341-12040iAGT20201008-201607

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-21040iAGT20201008-201607

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-21090iAGT20201008-201607

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iAGT20201305-201607

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-21120iAGT20201008-201607

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iAGT20201008-201607

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iAGT20201008-201607

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-12010iAGT20201008-201607

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

14 parts on this diagram · 1 diagram in section
