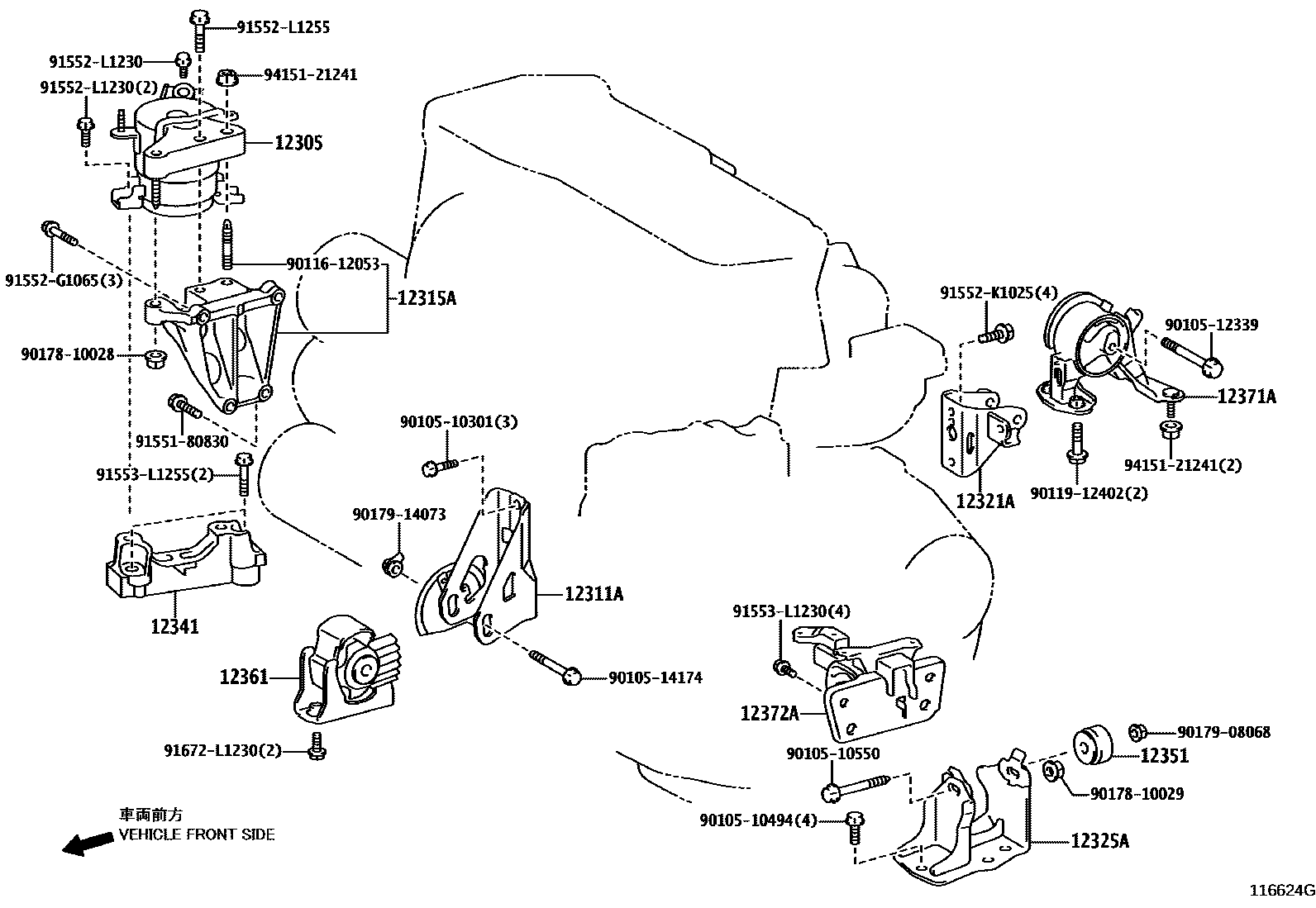

Toyota ZELAS — MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-36030i2ARFE..AGT20201008-201607

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-36050i2ARFE..AGT20..6F201008-201304

main12311-36060i2ARFE..AGT20..6FC201008-201607

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-36010i2ARFE..AGT20201008-201607

sub12315-36011

sub90116-12053

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-36030i2ARFE..AGT20..6F201008-201304

main12321-36040i2ARFE..AGT20..6FC201008-201607

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-36020i2ARFE..AGT20..6F201008-201304

main12325-36030i2ARFE..AGT20..6FC201008-201607

12341SPACER, ENGINE MOUNTING

main12341-26011i2ARFE..AGT20201008-201607

12351DAMPER, ENGINE MOUNTING

main12351-28100i2ARFE..AGT20..6F201008-201304

main12351-37020i2ARFE..AGT20201511-201607

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-36050i2ARFE..AGT20..6F201008-201304

main12361-36060i2ARFE..AGT20..6FC201008-201607

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-36040i2ARFE..AGT20..6F201008-201304

main12371-36050i2ARFE..AGT20..6FC201008-201607

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-36030i2ARFE..AGT20201008-201607

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512339

main90105-12339

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017908068

main90179-08068

9017914073

main90179-14073

9155180830

main91551-80830

91552G1065

main91552-G1065

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

30 parts on this diagram · 2 diagrams in section
