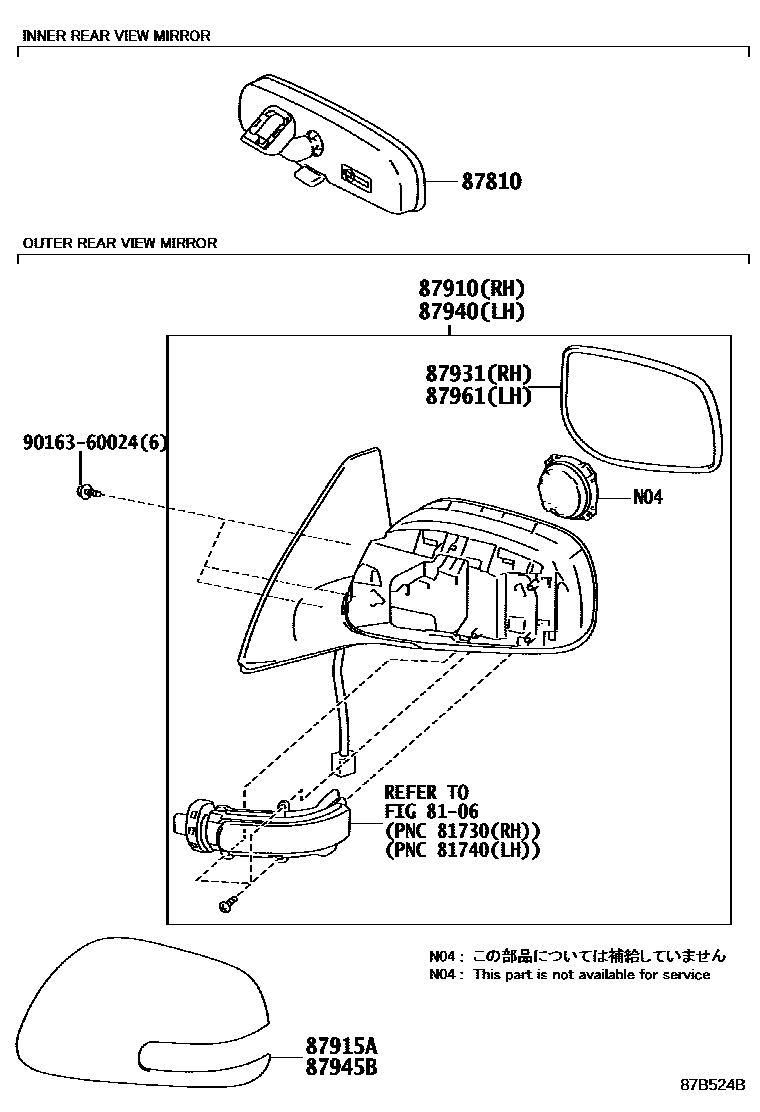

Toyota ZELAS — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G2
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
DK.BLUE MC.,8S6
BLUE ME.,8T7
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G2
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
DK.BLUE MC.,8S6
BLUE ME.,8T7
87961MIRROR OUTER, LH
9016360024
main90163-60024
9 parts on this diagram · 1 diagram in section
