Toyota ZELAS — METER

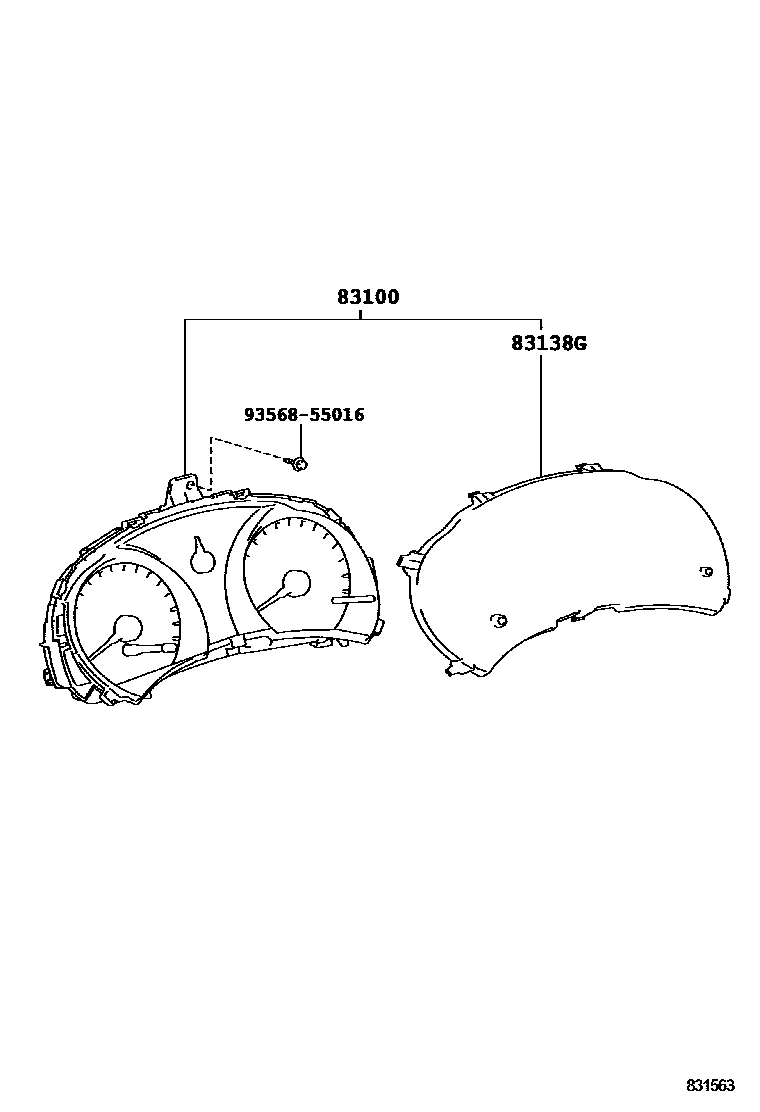

Parts diagram

83100METER ASSY, COMBINATION

main83800-21440i201010-201202

main83800-21441i201202-201209

main83800-21442i201209-201607

main83800-21450i201010-201202

main83800-21451i201202-201209

main83800-21452i201209-201304

main83800-21460i201008-201202

main83800-21461i201202-201210

main83800-21462i201210-201405

main83800-21470i201008-201202

main83800-21471i201202-201209

main83800-21472i201209-201304

83138GGLASS, COMBINATION METER

main83852-21400i201008-201607

9356855016

main93568-55016

3 parts on this diagram · 1 diagram in section
