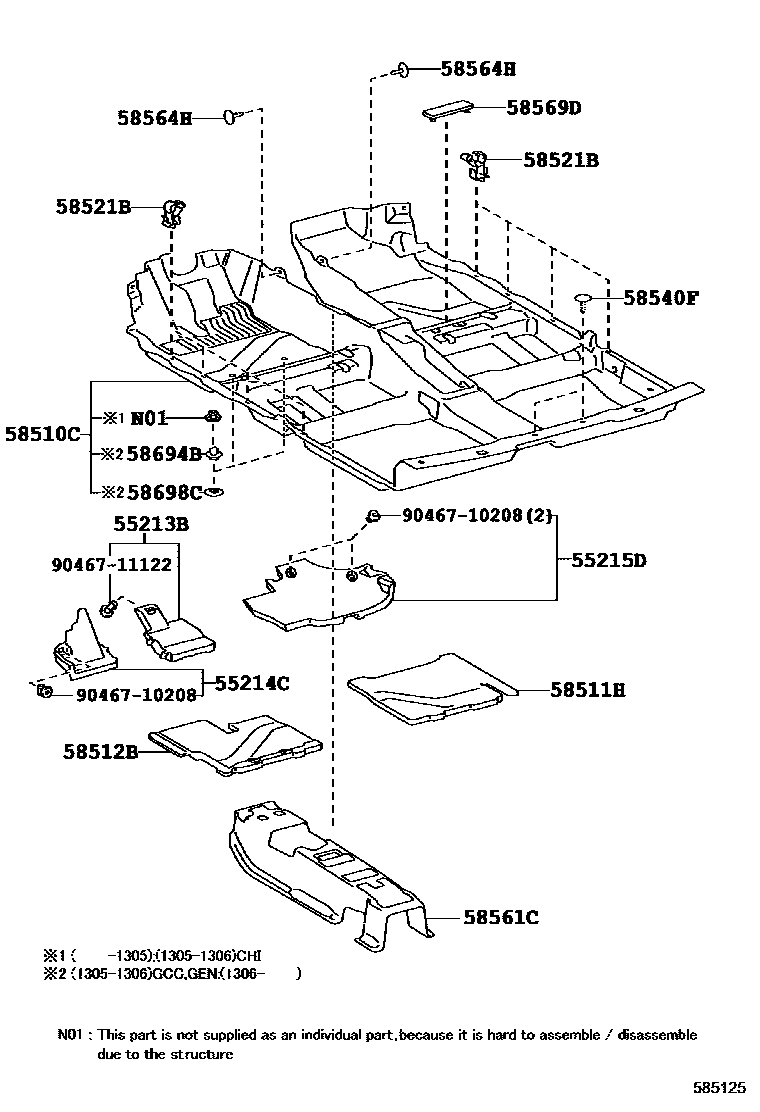

Toyota ZELAS — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-21040iAGT20201008-201607

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-21010iAGT20201008-201607

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-12100iAGT20201008-201607

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-21560-B0iAGT20..GCC,GEN201008-201305

DK.GRAY,TRIM1#

main58510-21580-B0iAGT20..CHI201102-201306

DK.GRAY,TRIM1#

main58510-21590-B0iAGT20..CHI201306-201405

DK. GREY,TRIM1#

main58510-21600-B0iAGT20..GCC,GEN201305-201607

DK. GREY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58511-21440iAGT20..GCC,GEN201008-201208

sub58511-21441

main58511-21441iAGT20..GCC,GEN201209-201305

sub58511-21442

main58511-21442iAGT20..GCC,GEN201305-201607

main58511-21450iAGT20..CHI201102-201208

sub58511-21451

main58511-21451iAGT20..CHI201209-201306

sub58511-21452

main58511-21452iAGT20..CHI201306-201405

58512BMAT, FLOOR, FRONT LH

main58512-21100iAGT20..GCC,GEN201008-201305

sub58512-21101

main58512-21101iAGT20..GCC,GEN201305-201607

main58512-21110iAGT20..CHI201102-201306

sub58512-21111

main58512-21111iAGT20..CHI201306-201405

58521BHOOK, FLOOR CARPET

main58521-12140iAGT20201008-201607

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-07049-B7iAGT20201008-201408

DK.GRAY,TRIM1#

sub90467-07049

main90467-07049-C0iAGT20201408-201607

BLACK

sub90467-07049

58561CSILENCER, FRONT FLOOR, NO.1

main58561-21030iAGT20201008-201607

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B2iAGT20201008-201408

DK.GRAY,TRIM1#

sub90467-05164

main90467-05164-C0iAGT20201408-201607

BLACK

sub90467-05164

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-21010-B0iAGT20201008-201208

DK.GRAY,TRIM1#

sub58569-21011

main58569-21011-B0iAGT20201209-201607

DK.GRAY,TRIM1#

58694BPLATE, MAT SET, UPPER

main58694-76010iAGT20201305-201607

58698CPLATE, MAT SET, LOWER

main58698-76010iAGT20201305-201607

9046710208

main90467-10208

9046711122

main90467-11122

15 parts on this diagram · 1 diagram in section
