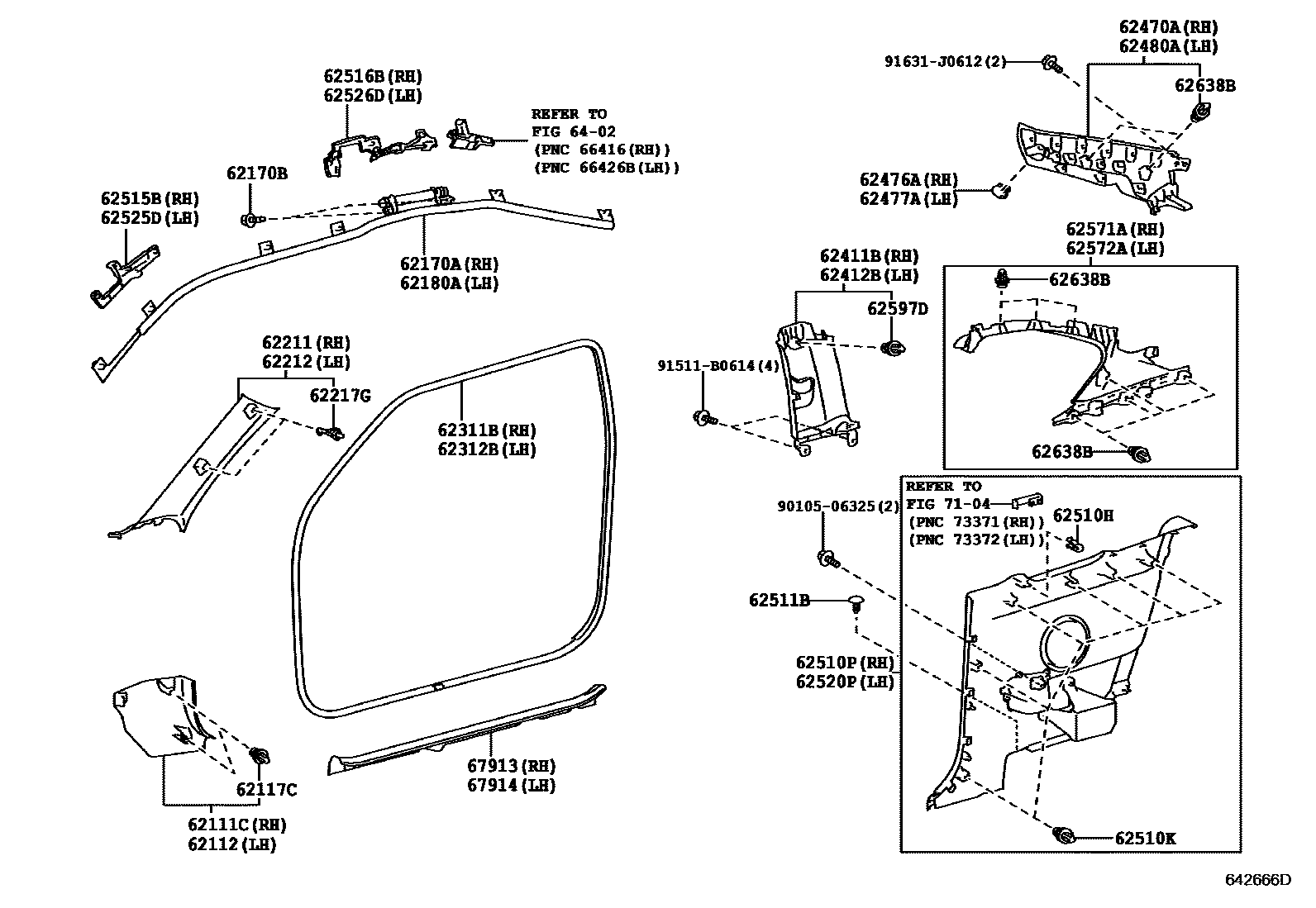

Toyota ZELAS — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
DK.GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
DK.GRAY,TRIM1#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
MD.GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
DK.GRAY,TRIM1#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
DK.GRAY,TRIM1#
62411BGARNISH, CENTER PILLAR, UPPER RH
DK.GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
DK.GRAY,TRIM1#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
DK.GRAY,TRIM1#
62476ACAP, ROOF SIDE INNER GARNISH, RH
DK.GRAY,TRIM1#
62477ACAP, ROOF SIDE INNER GARNISH, LH
DK.GRAY,TRIM1#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
DK.GRAY,TRIM1#
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
DK.GRAY,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62515BCOVER, SIDE TRIM BASE, NO.1 RH
62516BCOVER, SIDE TRIM BASE, NO.2 RH
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
DK.GRAY,TRIM1#
62525DCOVER, SIDE TRIM BASE, NO.1 LH
62526DCOVER, SIDE TRIM BASE, NO.2 LH
62571AGARNISH, ROOF SIDE, INNER LOWER RH
DK.GRAY,TRIM1#
62572AGARNISH, ROOF SIDE INNER LOWER LH
DK.GRAY,TRIM1#
62597DCLIP
62638BCLIP
6402
67913PLATE, FRONT DOOR SCUFF, RH
DK.GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
DK.GRAY,TRIM1#
7104
9010506325
main90105-06325
91511B0614
main91511-B0614
91631J0612
main91631-J0612
37 parts on this diagram · 1 diagram in section
