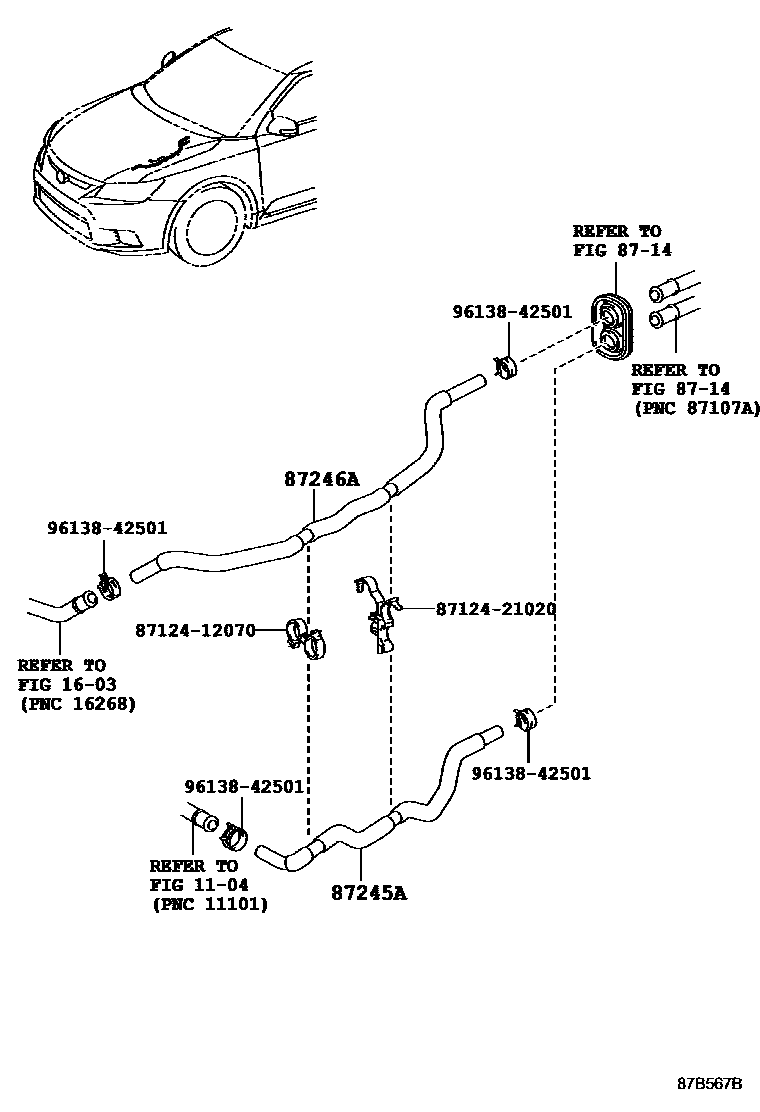

Toyota ZELAS — HEATING & AIR CONDITIONING - WATER PIPING

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-21210iAGT20201008-201607

87246AHOSE, HEATER WATER, OUTLET A

main87245-21220iAGT20201008-201607

8712412070CLAMP, HEATER

main87124-12070

8712421020CLAMP, HEATER

main87124-21020

9613842501

main96138-42501

8 parts on this diagram · 1 diagram in section
