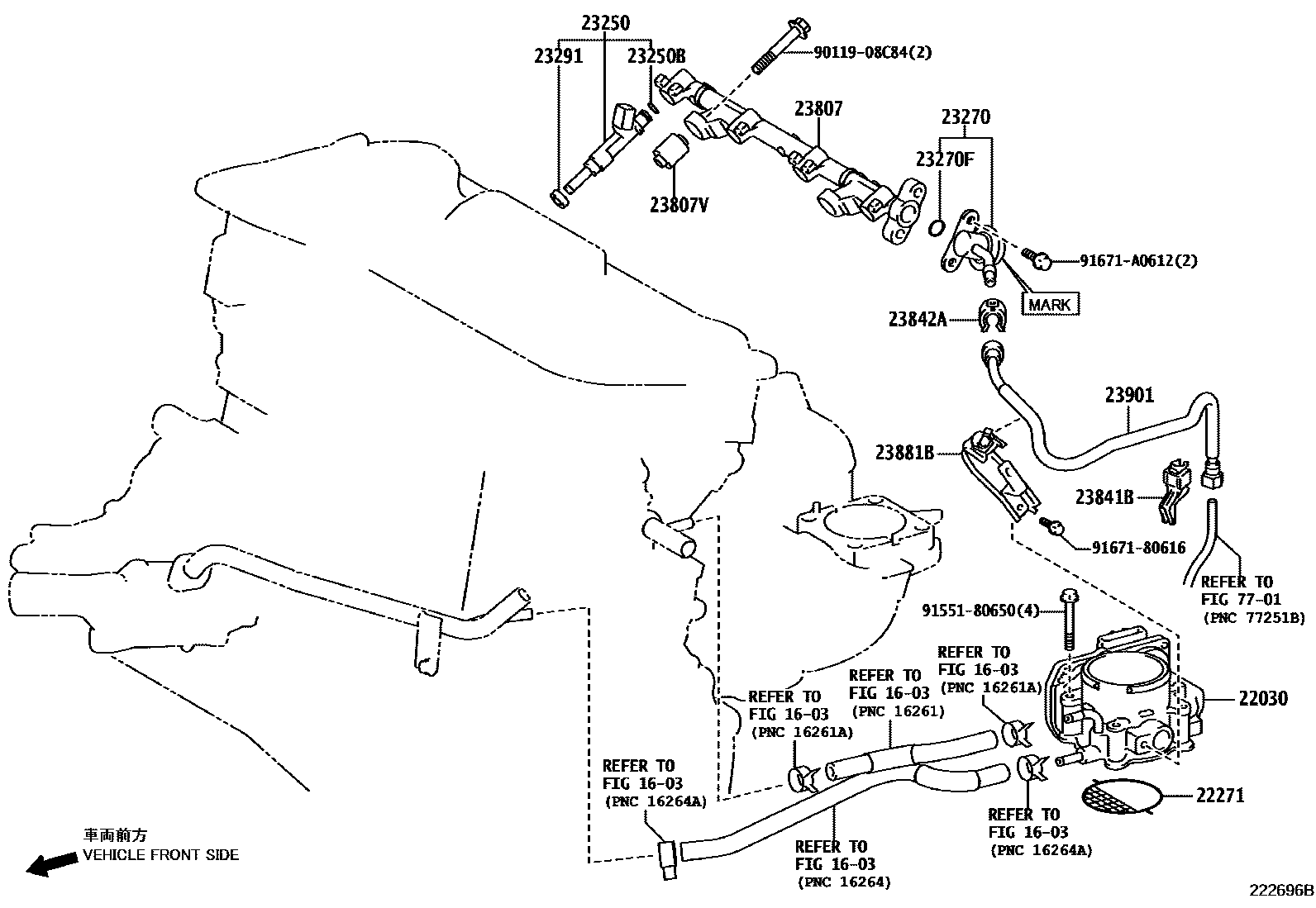

Toyota ZELAS — FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-36010i2ARFE..AGT20201008-201607

22271GASKET, THROTTLE BODY

main22271-36010i2ARFE..AGT20201008-201607

23250INJECTOR ASSY, FUEL

main23209-39175i2ARFE..AGT20201008-201607

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ARFE..AGT20201008-201607

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36010i2ARFE..AGT20201008-201109

sub23270-36031

main23270-36031i2ARFE..AGT20201109-201607

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..AGT20201008-201607

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2ARFE..AGT20201008-201607

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36010i2ARFE..AGT20201008-201306

sub23814-36040

main23814-36040i2ARFE..AGT20201305-201607

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-36010i2ARFE..AGT20201305-201607

main23891-37010i2ARFE..AGT20201008-201306

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-36010i2ARFE..AGT20201008-201607

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFE..AGT20201008-201607

23881BBRACKET, FUEL HOSE

main23881-36020i2ARFE..AGT20201008-201607

23901TUBE SUB-ASSY, FUEL

main23901-36040i2ARFE..AGT20201008-201407

sub23901-36041

main23901-36041i2ARFE..AGT20201408-201607

7701

9011908C84

main90119-08C84

9155180650

main91551-80650

9167180616

main91671-80616

91671A0612

main91671-A0612

19 parts on this diagram · 1 diagram in section
