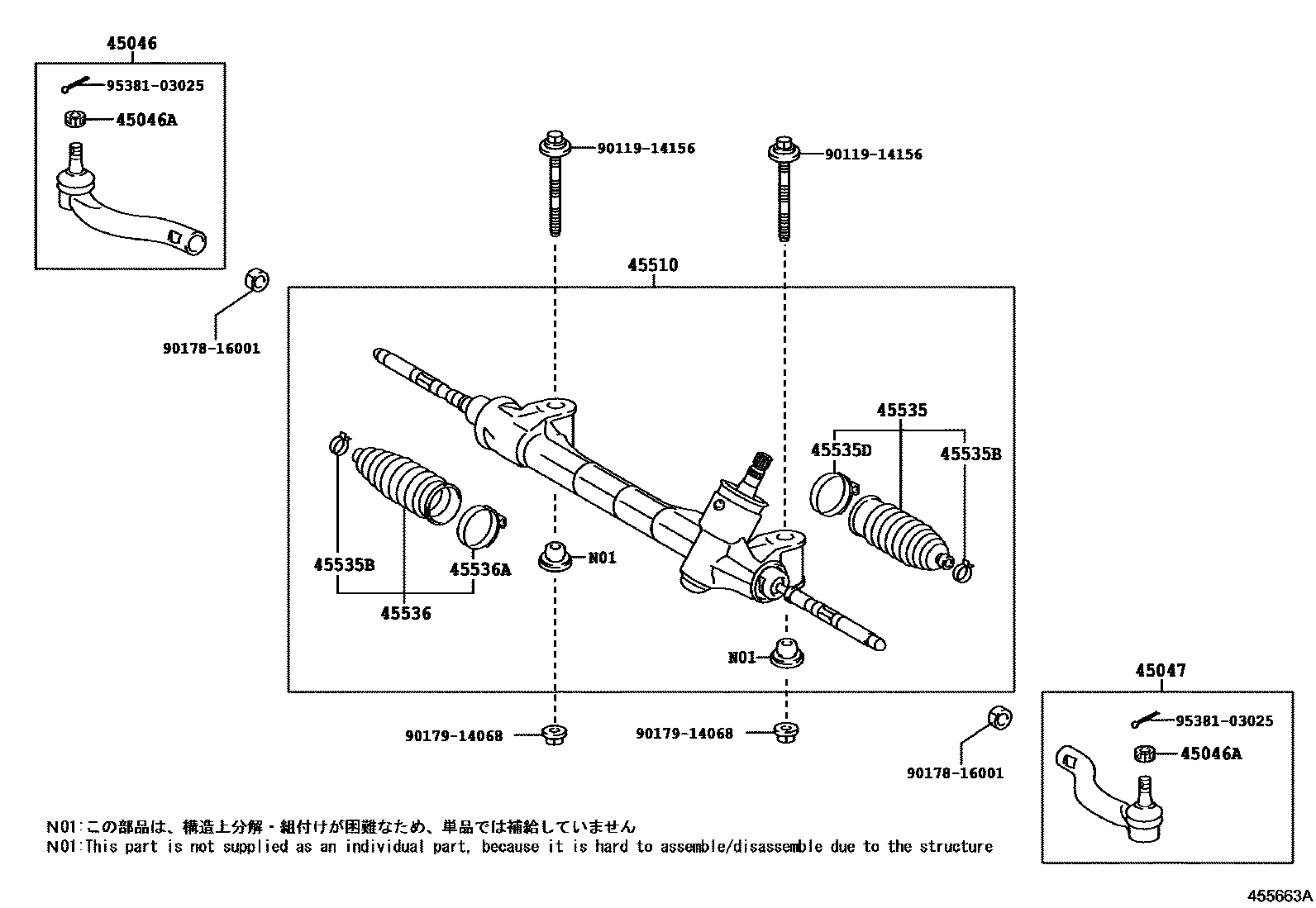

Toyota ZELAS — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iAGT20201008-201607

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAGT20201008-201607

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iAGT20201008-201607

45510GEAR ASSY, STEERING

main45510-75030iAGT20201008-201607

45535BOOT, STEERING RACK, NO.1

main45535-49015iAGT20201008-201607

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAGT20201008-201607

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iAGT20201008-201607

45536BOOT, STEERING RACK, NO.2

main45535-49015iAGT20201008-201607

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iAGT20201008-201607

9011914156

main90119-14156

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
