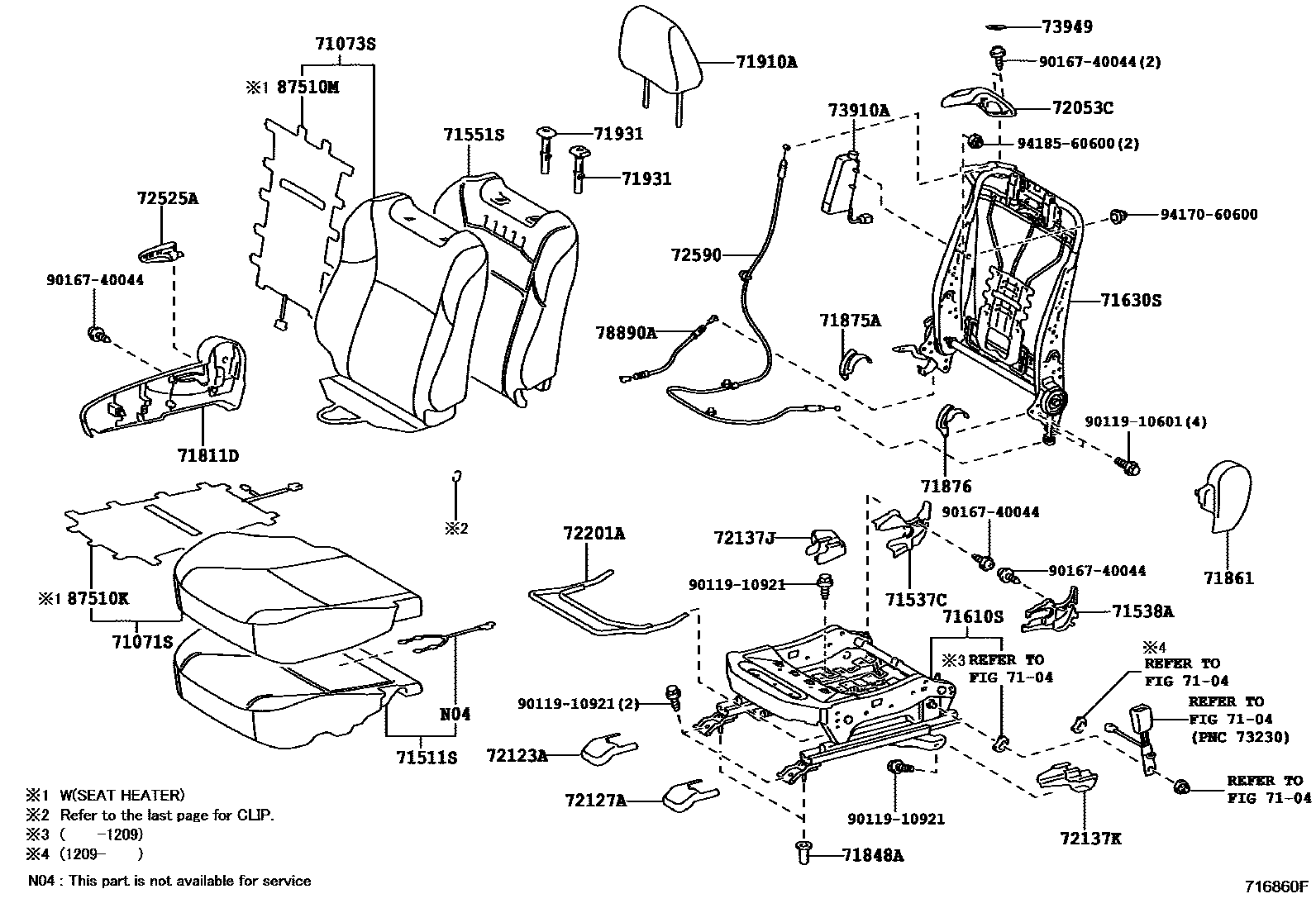

Toyota ZELAS — FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT 0003 1CLIP

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-21430-B2iAGT20201305-201607

MD.GRAY,TRIM1#

main71071-21460-B1iAGT20201008-201306

DARK GRAY,TRIM1#

sub71071-21461

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-21450-B0iAGT20201008-201306

DK.GRAY,TRIM1#

sub71073-21451

main71073-21540-B1iAGT20201305-201607

MD.GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-21020iAGT20201008-201607

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-21010-B0iAGT20201008-201607

DK.GRAY,TRIM1#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-21010-B0iAGT20201008-201607

DK.GRAY,TRIM1#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-21130iAGT20201008-201607

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-21020iAGT20201008-201209

main71610-21021iAGT20201209-201607

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-21030iAGT20201008-201106

sub71630-21031

sub72590-21022

main71630-21031iAGT20201106-201607

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-21060-B0iAGT20201008-201607

DK.GRAY,TRIM1#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-26010iAGT20201008-201607

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-21040-B0iAGT20201008-201607

DK.GRAY,TRIM1#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60260-B1iAGT20201008-201607

DK.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-60270-B1iAGT20201008-201607

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-21280-B1iAGT20201008-201407

DARK GRAY,TRIM1#

sub71910-21390

sub71910-21410

main71910-21410-B0iAGT20201408-201607

DARK GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-B2iAGT20201008-201607

W(LOCK),DK.GRAY,TRIM1#

sub71930-47020

main71931-47020-B2iAGT20201008-201607

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-47020

72053CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

main72053-21010-B0iAGT20201008-201607

DK.GRAY,TRIM1#

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-21010-B0iAGT20201008-201607

DK.GRAY,TRIM1#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-21010-B0iAGT20201008-201607

DK.GRAY,TRIM1#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-21030-B0iAGT20201008-201607

DK.GRAY,TRIM1#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-21030-B0iAGT20201008-201607

DK.GRAY,TRIM1#

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72211-21030iAGT20201008-201607

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-B1iAGT20201008-201607

DK.GRAY,TRIM1#

sub72525-47010

sub72525-52050

72590CABLE ASSY, SEATBACK CONTROL

main72590-21021iAGT20201008-201106

main72590-21022iAGT20201106-201607

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-21030iAGT20201008-201607

73949CAP

main71848-21010-B0iAGT20201008-201607

DK.GRAY,TRIM1#

78890ACABLE ASSY, SUB-SEAT LOCK CONTROL

main78890-21010iAGT20201008-201607

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

87510MHEATER ASSY, FRONT SEATBACK, RH

9011910601

main90119-10601

9011910921

main90119-10921

9016740044

main90167-40044

9417060600

main94170-60600

9418560600

main94185-60600

34 parts on this diagram · 3 diagrams in section
