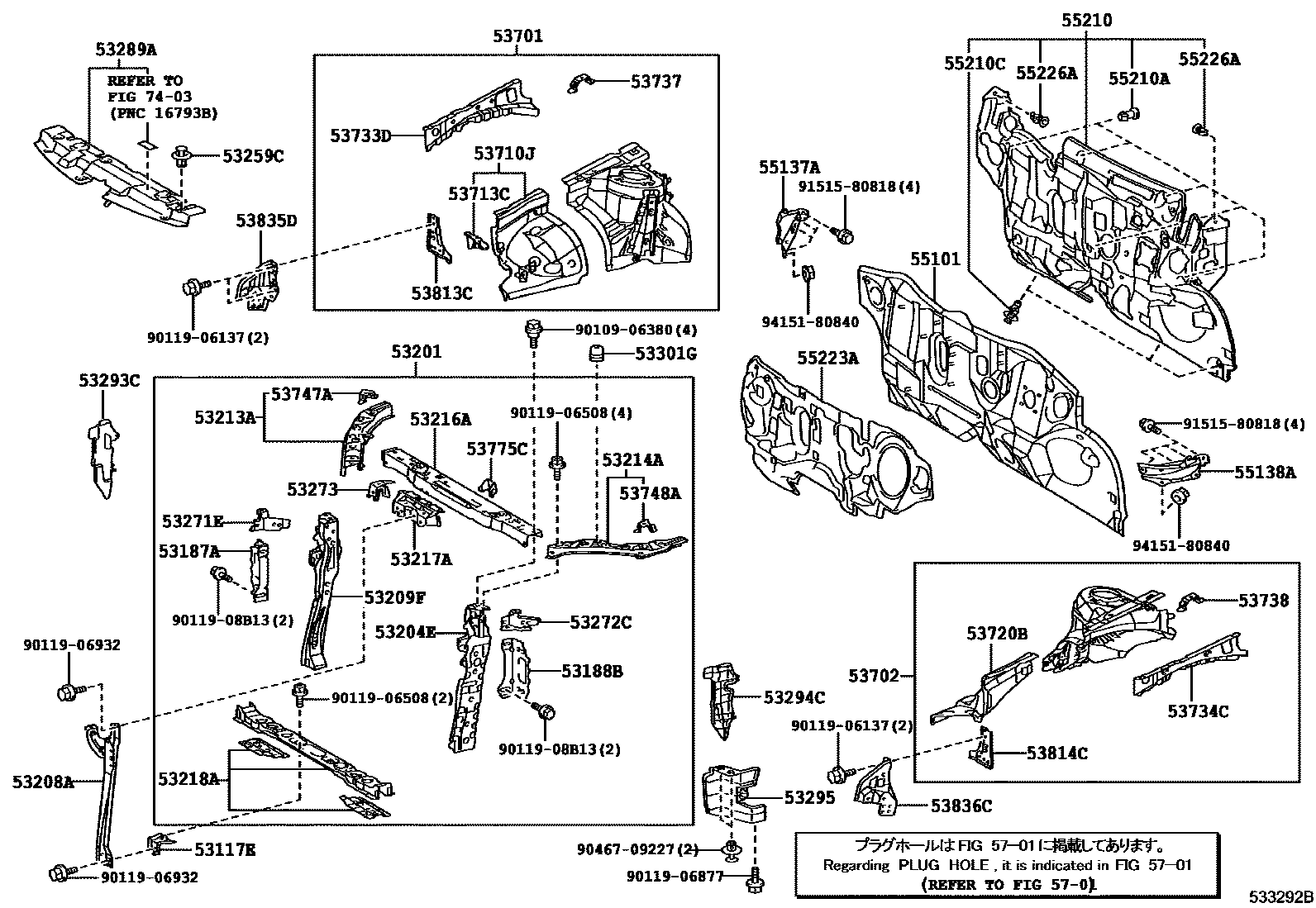

Toyota ZELAS — FRONT FENDER APRON & DASH PANEL
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH
53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53218ASUPPORT, RADIATOR, LOWER
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53289ACOVER, RADIATOR SUPPORT OPENING
53295DEFLECTOR, RADIATOR LOWER AIR
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710JAPRON ASSY, FRONT FENDER, RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53720BAPRON ASSY, FRONT FENDER, LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53775CBRACKET, COOL AIR INTAKE DUCT MOUNTING
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55210ACLIP
55210CCLIP
55226ACLIP
5701
7403
9010906380
main90109-06380
9011906137
main90119-06137
9011906508
main90119-06508
9011906877
main90119-06877
9011906932
main90119-06932
9011908B13
main90119-08B13
9046709227
main90467-09227
9151580818
main91515-80818
9415180840
main94151-80840
56 parts on this diagram · 2 diagrams in section
