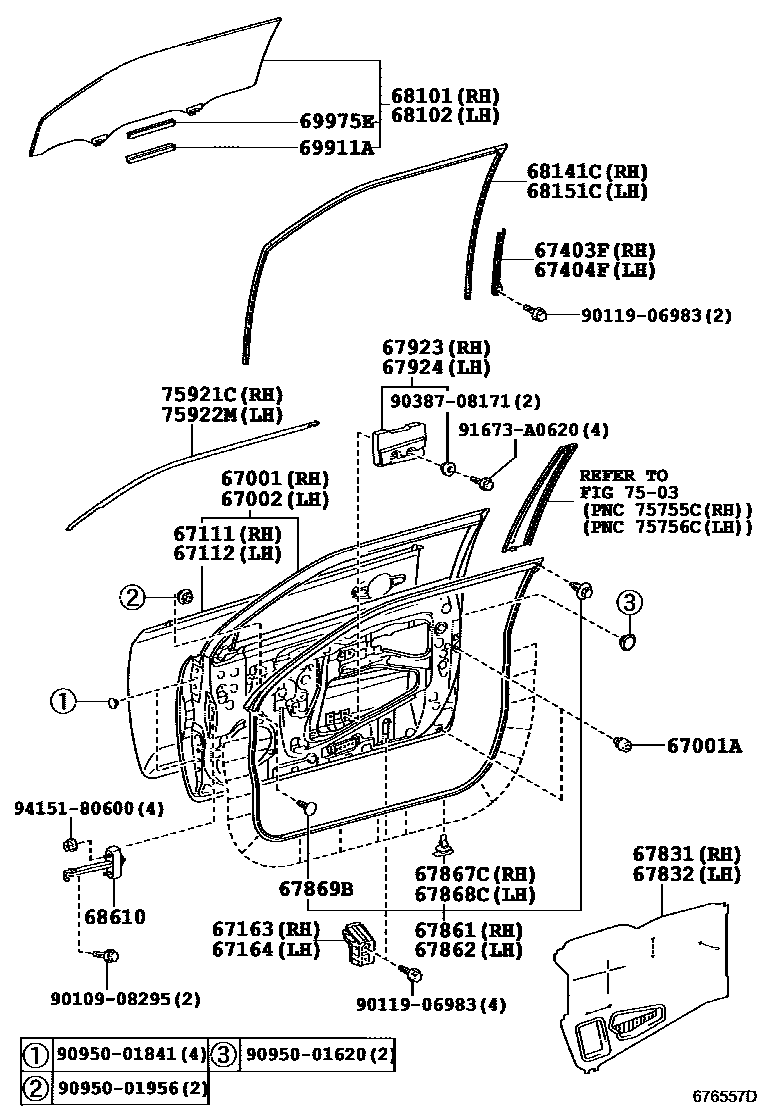

Toyota ZELAS — FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67163EXTENSION, FRONT DOOR INSIDE PANEL REINFORCEMENT, REAR RH
67164EXTENSION, FRONT DOOR INSIDE PANEL REINFORCEMENT, REAR LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
69911ACHANNEL, FRONT DOOR GLASS, NO.1
69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1
7503
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
9010908295
main90109-08295
9011906983
main90119-06983
9038708171
main90387-08171
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
91673A0620
main91673-A0620
9415180600
main94151-80600
36 parts on this diagram · 2 diagrams in section
