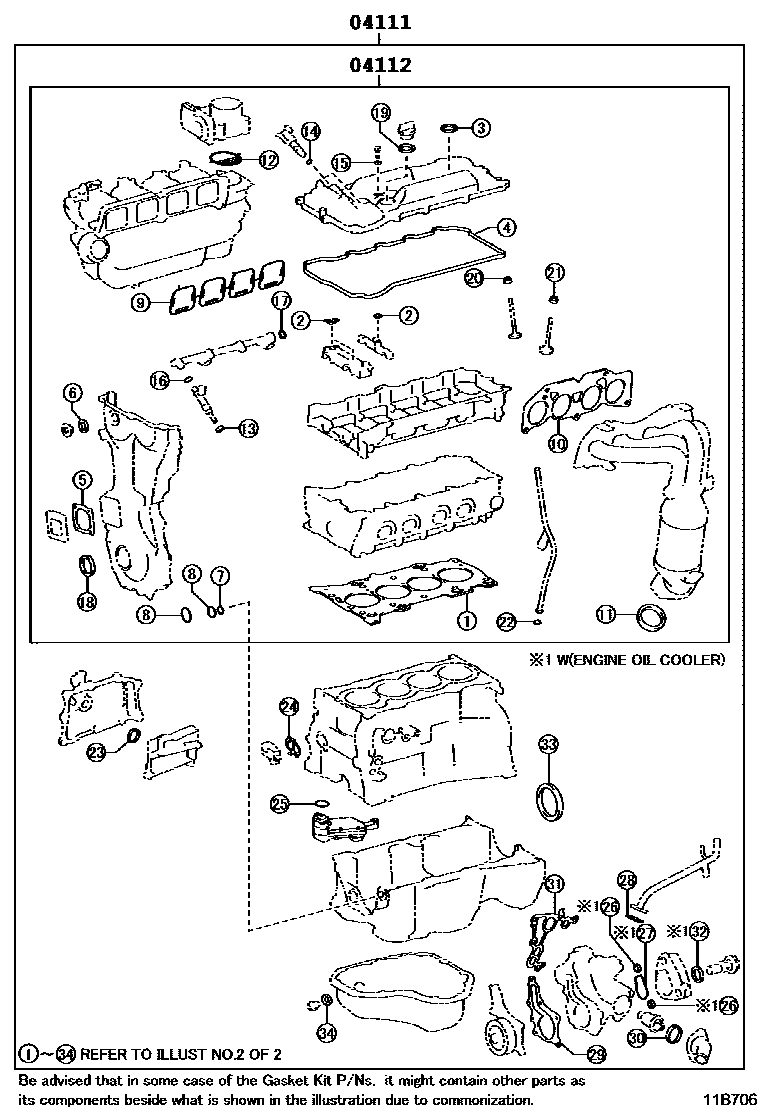

Toyota ZELAS — ENGINE OVERHAUL GASKET KIT

0001 1 0002 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-36062i2ARFE..AGT20..GEN201203-201309

sub04111-36063

main04111-36063i2ARFE..AGT20..GEN201309-201312

sub04111-36064

main04111-36064i2ARFE..AGT20..GEN201312-201405

sub04111-36065

main04111-36070i2ARFE..AGT20..GEN201008-201111

sub04111-36071

main04111-36071i2ARFE..AGT20..GEN201111-201201

sub04111-36072

main04111-36072i2ARFE..AGT20..GEN201201-201202

sub04111-36062

main04111-36100i2ARFE..AGT20..CHI,GCC201010-201111

sub04111-36101

main04111-36101i2ARFE..AGT20..CHI,GCC201111-201201

CHILE SPEC

sub04111-36102

main04111-36102i2ARFE..AGT20..CHI,GCC201305-201309

CHILE SPEC

sub04111-36103

main04111-36102i2ARFE..AGT20..CHI,GCC201201-201306

sub04111-36103

main04111-36103i2ARFE..AGT20..GEN201309-201312

CHILE SPEC

sub04111-36104

main04111-36104i2ARFE..AGT20..CHI,GCC201312-201406

sub04111-36105

main04111-36105i2ARFE..AGT20201406-201408

sub04111-36106

main04111-36106i2ARFE..AGT20201408-201607

sub04111-36107

04112GASKET KIT, ENGINE VALVE GRIND

main04112-36051i2ARFE..AGT20201203-201312

sub04112-36052

main04112-36052i2ARFE..AGT20201312-201406

sub04112-36053

main04112-36053i2ARFE..AGT20201406-201408

sub04112-36054

main04112-36054i2ARFE..AGT20201408-201607

sub04112-36055

main04112-36060i2ARFE..AGT20201008-201201

sub04112-36061

main04112-36061i2ARFE..AGT20..CHI,GCC201201-201203

sub04112-36051

2 parts on this diagram · 2 diagrams in section
