Toyota ZELAS — ENGINE OIL PUMP

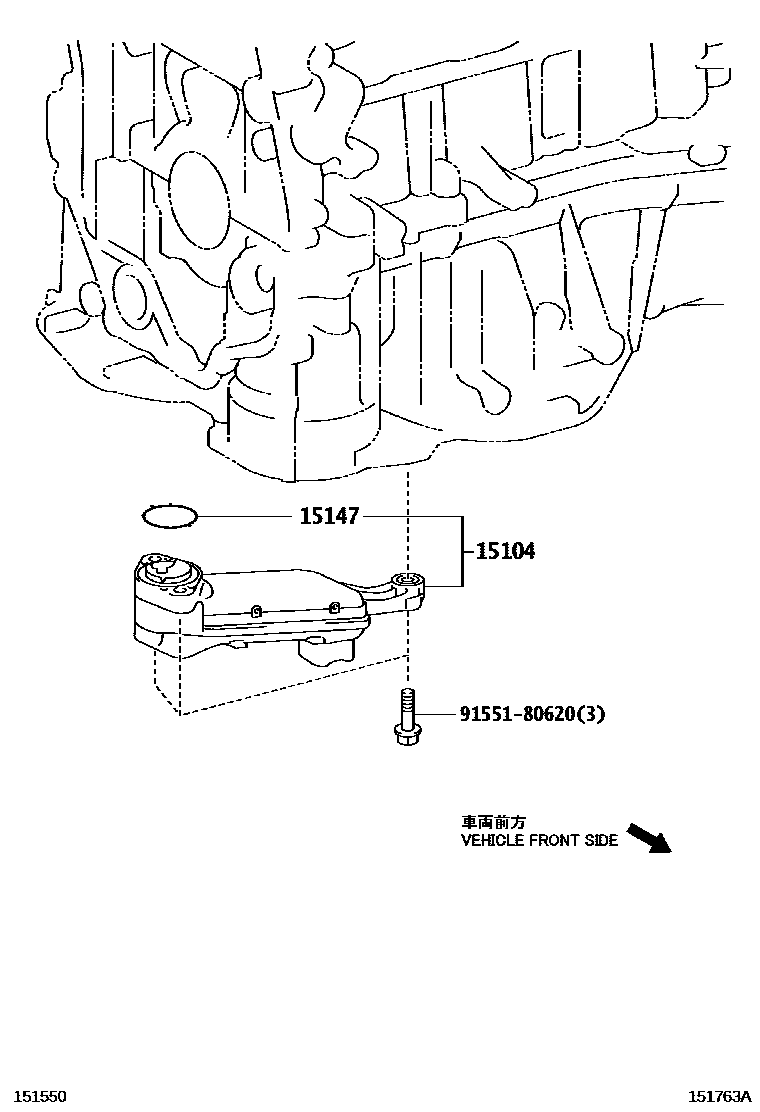

Parts diagram

15104STRAINER SUB-ASSY, OIL

main15104-36030i201008-201607

15147GASKET, OIL STRAINER

main15147-36010i201008-201607

9155180620

main91551-80620

3 parts on this diagram · 1 diagram in section
