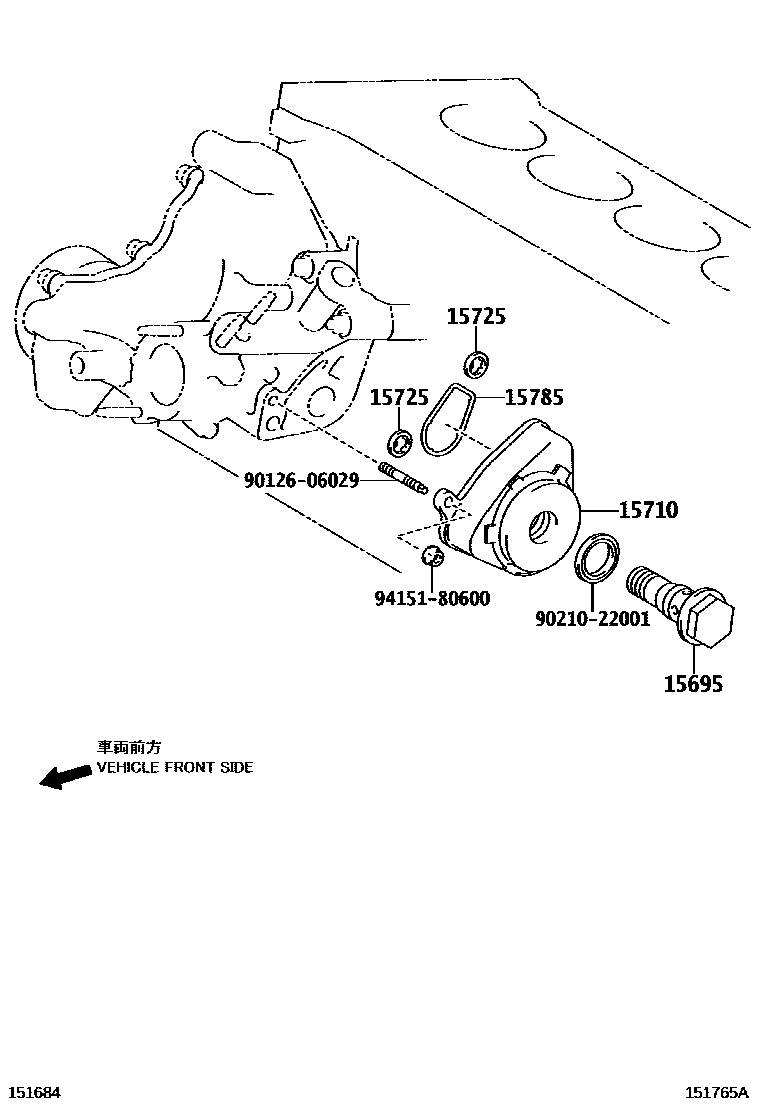

Toyota ZELAS — ENGINE OIL COOLER

15695BOLT, OIL COOLER UNION

main15695-62030i2ARFE..AGT20..CHI,GCC201010-201607

15710COOLER ASSY, OIL

main15710-36010i2ARFE..AGT20..CHI,GCC201010-201607

15725GASKET, OIL COOLER COVER

main15725-36010i2ARFE..AGT20..CHI,GCC201010-201607

15785GASKET, OIL COOLER

main15785-36010i2ARFE..AGT20..CHI,GCC201010-201607

9012606029

main90126-06029

9021022001

main90210-22001

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section
