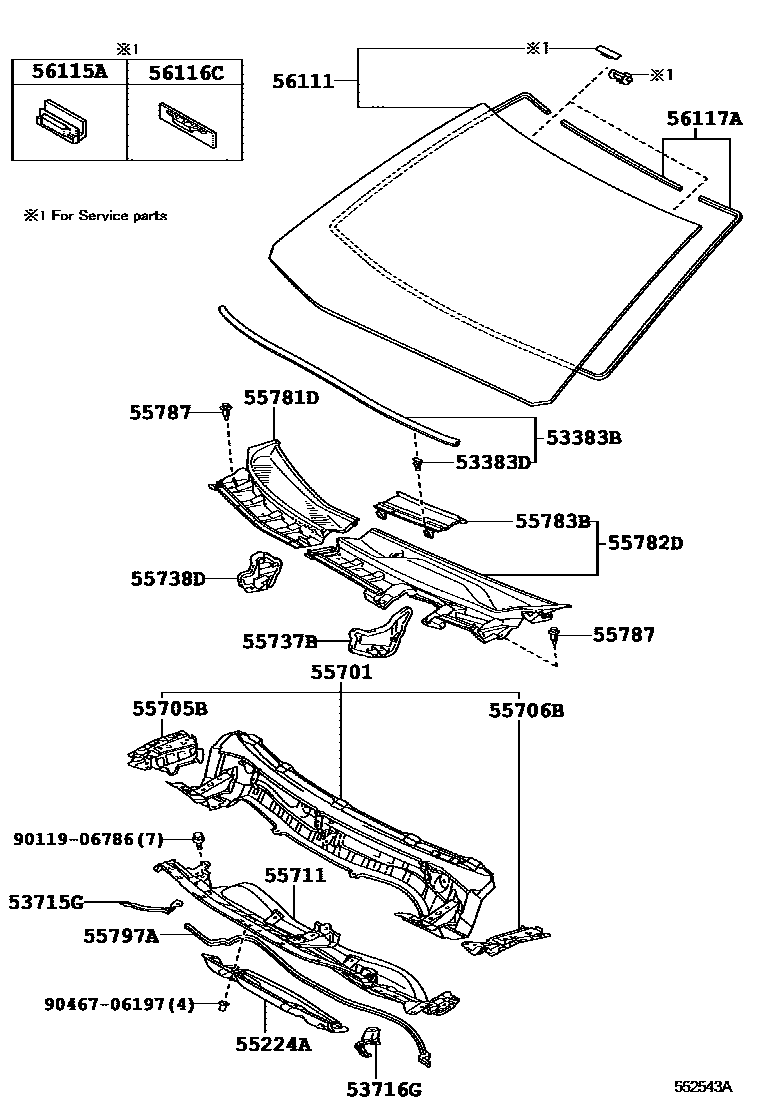

Toyota ZELAS — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-21030iAGT20201008-201607

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iAGT20201008-201607

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-21010iAGT20201008-201607

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-21010iAGT20201008-201607

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-21010iAGT20201008-201607

55701PANEL SUB-ASSY, COWL

main55700-21090iAGT20201008-201607

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-21030iAGT20201008-201607

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-21030iAGT20201008-201607

55711PANEL, COWL TOP, OUTER

main55701-21020iAGT20201008-201607

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-21020iAGT20201008-201607

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-21010iAGT20201008-201607

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-21040iAGT20201008-201607

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-21020iAGT20201008-201607

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-21020iAGT20201008-201607

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0iAGT20201008-201607

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55797ASEAL, COWL WATER EXTRACT

main55797-21020iAGT20201008-201607

56111GLASS, WINDSHIELD

main56101-21040iAGT20201008-201607

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAGT20201008-201607

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAGT20201008-201607

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iAGT20201008-201607

*D,L=3123 OR 612

9011906786

main90119-06786

9046706197

main90467-06197

22 parts on this diagram · 1 diagram in section
