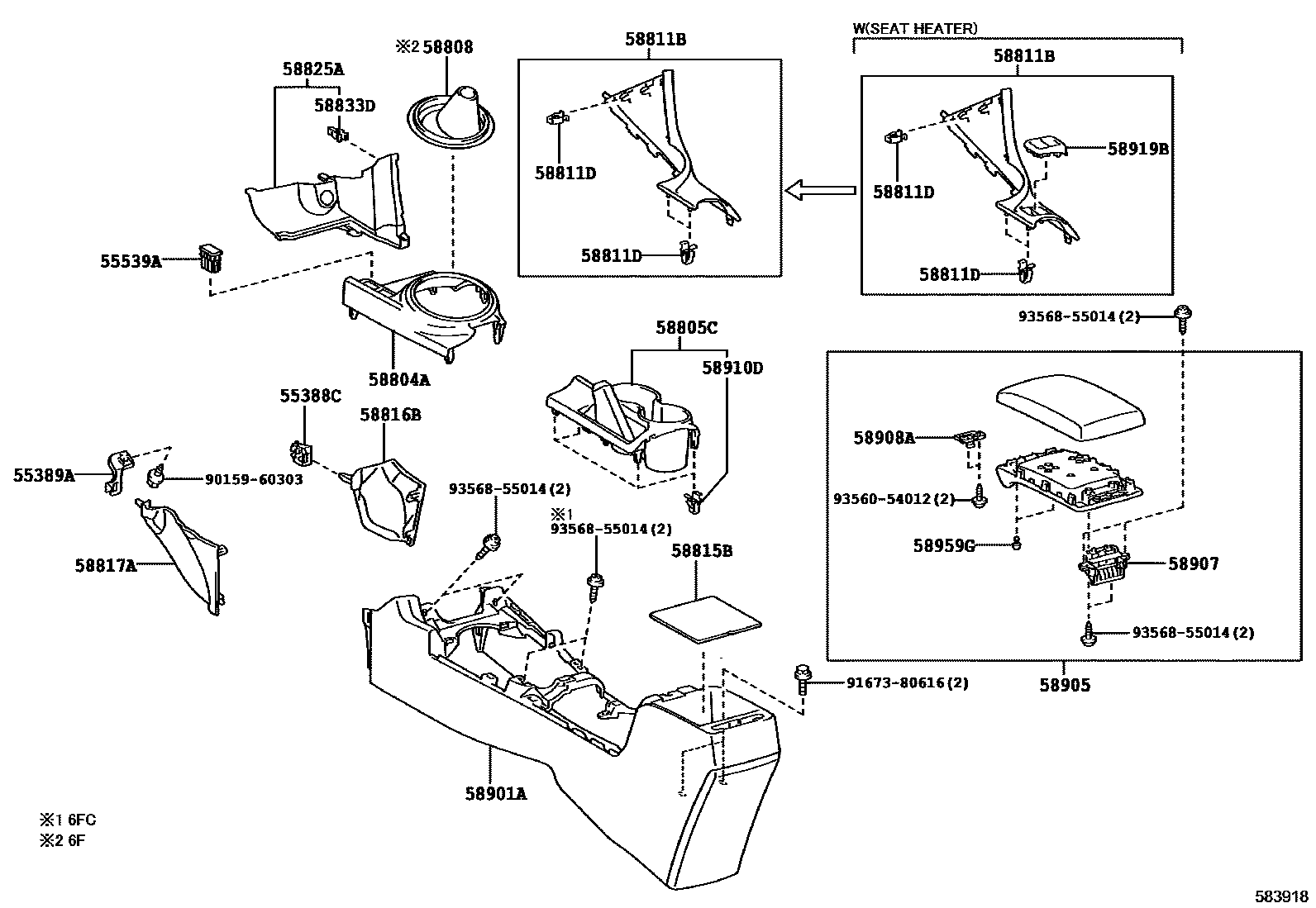

Toyota ZELAS — CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55539ACOVER, SPARE SWITCH HOLE
58804APANEL SUB-ASSY, CONSOLE, UPPER
DK.GRAY,TRIM1#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
DK.GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#
58811BBOX, CONSOLE
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
58811DCLIP(FOR CONSOLE BOX)
58815BCARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
DK.GRAY,TRIM1#
58817AINSERT, CONSOLE BOX, FRONT NO.2
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
58825APOCKET, CONSOLE BOX
DK.GRAY,TRIM1#
58833DCLIP(FOR CONSOLE COVER)
58901ABOX SUB-ASSY, CONSOLE, REAR
DK.GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK.GRAY,TRIM1#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910DCLIP(FOR CONSOLE BOX)
58919BPLATE, CONSOLE BOX
58959GCUSHION, CONSOLE COMPARTMENT DOOR
9015960303
main90159-60303
9167380616
main91673-80616
9356054012
main93560-54012
9356855014
main93568-55014
24 parts on this diagram · 1 diagram in section
