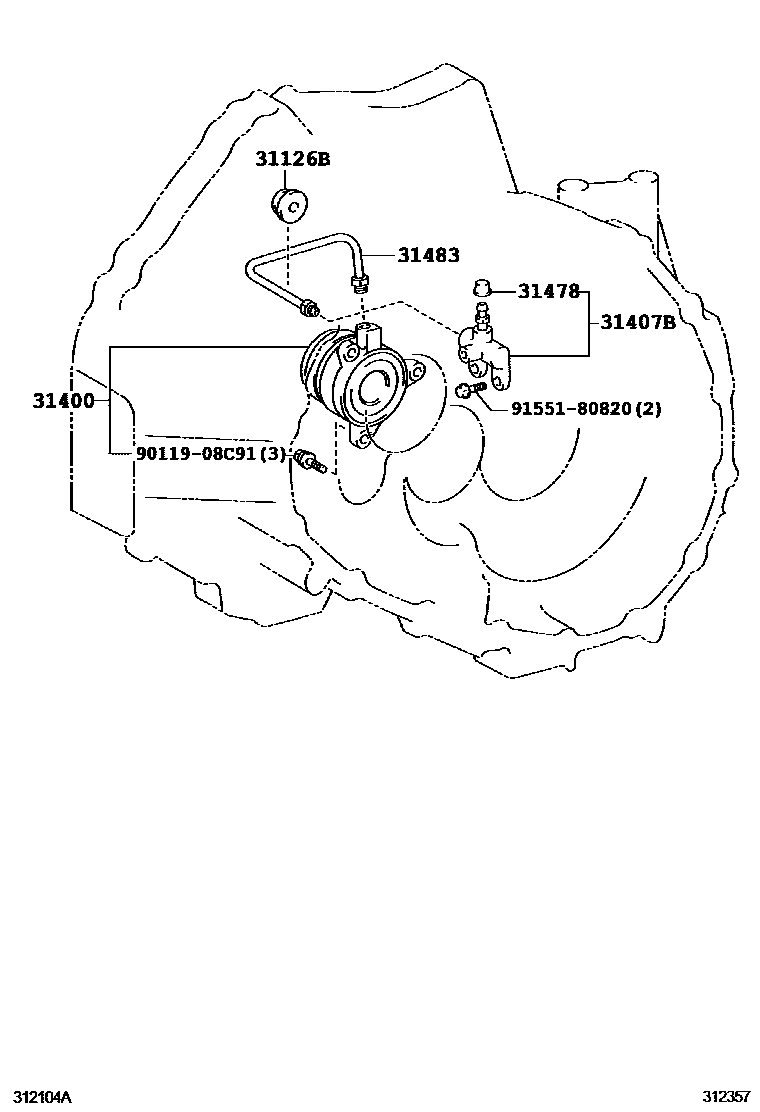

Toyota ZELAS — CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-20090iAGT20..6F201008-201304

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-39006iAGT20..6F201008-201304

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-20011iAGT20..6F201008-201304

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAGT20..6F201008-201304

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-20610iAGT20..6F201008-201304

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 1 diagram in section
