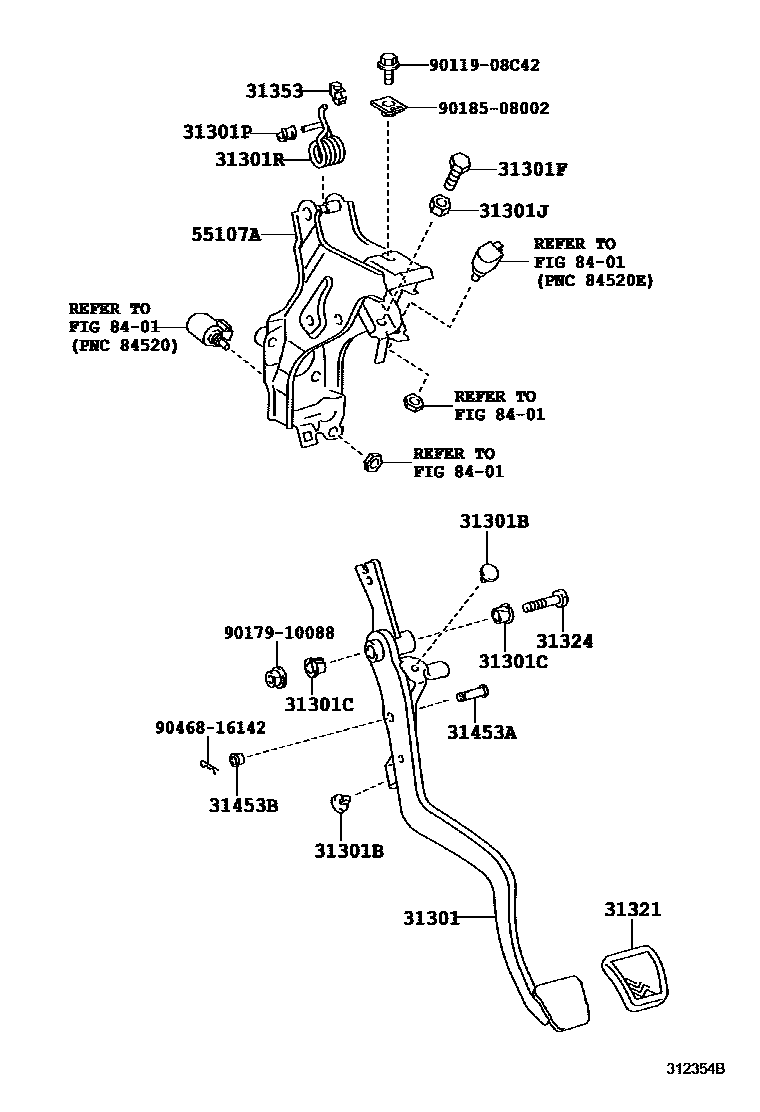

Toyota ZELAS — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-21060iAGT20..6F201008-201304

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAGT20..6F201008-201304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAGT20..6F201008-201304

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iAGT20..6F201008-201304

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iAGT20..6F201008-201304

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iAGT20..6F201008-201304

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31394-12080iAGT20..6F201008-201304

31321PAD, CLUTCH PEDAL

main31321-42010iAGT20..6F201008-201304

31324SHAFT, CLUTCH PEDAL

main90109-10167iAGT20..6F201008-201304

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iAGT20..6F201008-201304

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iAGT20..6F201008-201304

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iAGT20..6F201008-201304

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12301iAGT20..6F201008-201304

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

18 parts on this diagram · 2 diagrams in section
