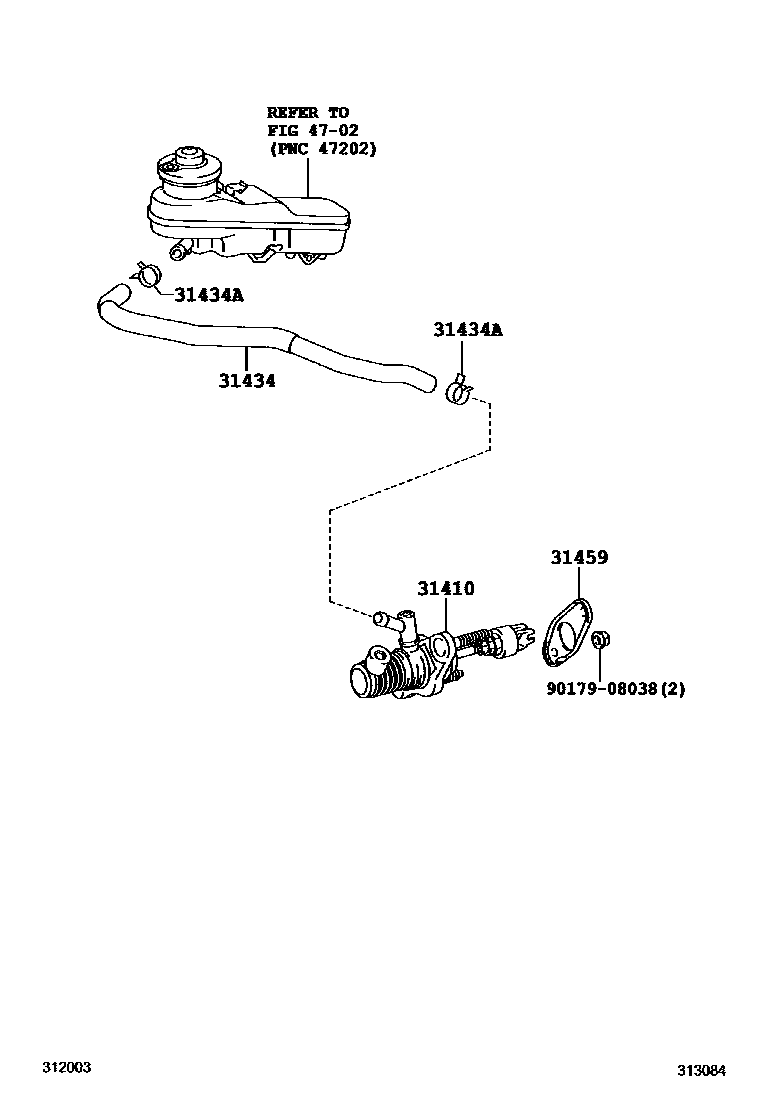

Toyota ZELAS — CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12030iAGT20..6F201008-201304

31434TUBE, CLUTCH RESERVOIR

main31434-12100iAGT20..6F201008-201304

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801iAGT20..6F201008-201304

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iAGT20..6F201008-201304

4702

9017908038

main90179-08038

6 parts on this diagram · 1 diagram in section
