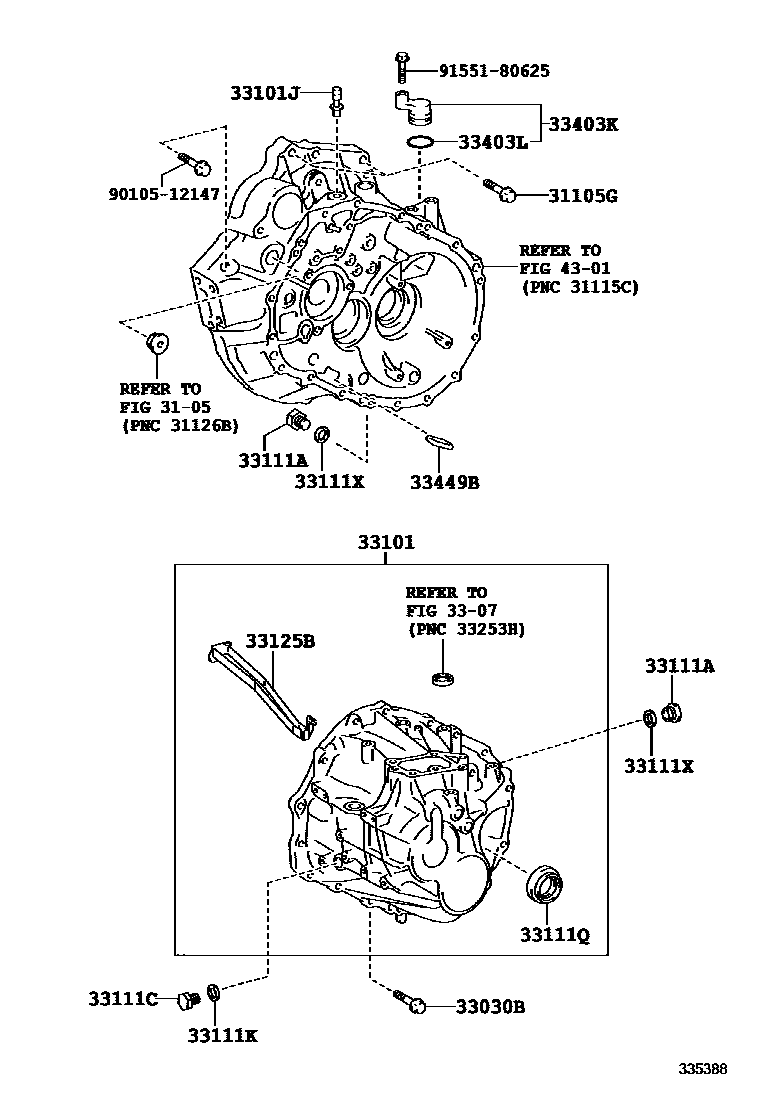

Toyota ZELAS — CLUTCH HOUSING & TRANSMISSION CASE (MTM)

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-12252iAGT20..6F201008-201304

*12-1.25PX60-30

main91512-61060iAGT20..6F201008-201304

*10-1.25PX60-30

main91512-61065iAGT20..6F201008-201304

*10-1.25PX65-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840iAGT20..6F201008-201304

*8-1.25PX40-22

3307

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-33030iAGT20..6F201008-201304

33101JPLUG, BREATHER

main90930-03085iAGT20..6F201008-201304

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iAGT20..6F201008-201304

33111CPLUG(FOR TRANSMISSION CASE)

main90341-18033iAGT20..6F201008-201304

OD=24

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iAGT20..6F201211-201304

main90430-18008iAGT20..6F201008-201211

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-50032iAGT20..6F201008-201101

sub90311-50046

main90311-50046iAGT20..6F201101-201304

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iAGT20..6F201211-201304

main90430-18008iAGT20..6F201008-201211

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-20020iAGT20..6F201008-201304

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iAGT20..6F201008-201304

33403LRING, O

main96711-24018iAGT20..6F201008-201304

33449BMAGNET, TRANSMISSION

main33449-60010iAGT20..6F201008-201304

4301

9010512147

main90105-12147

9155180625

main91551-80625

18 parts on this diagram · 1 diagram in section
