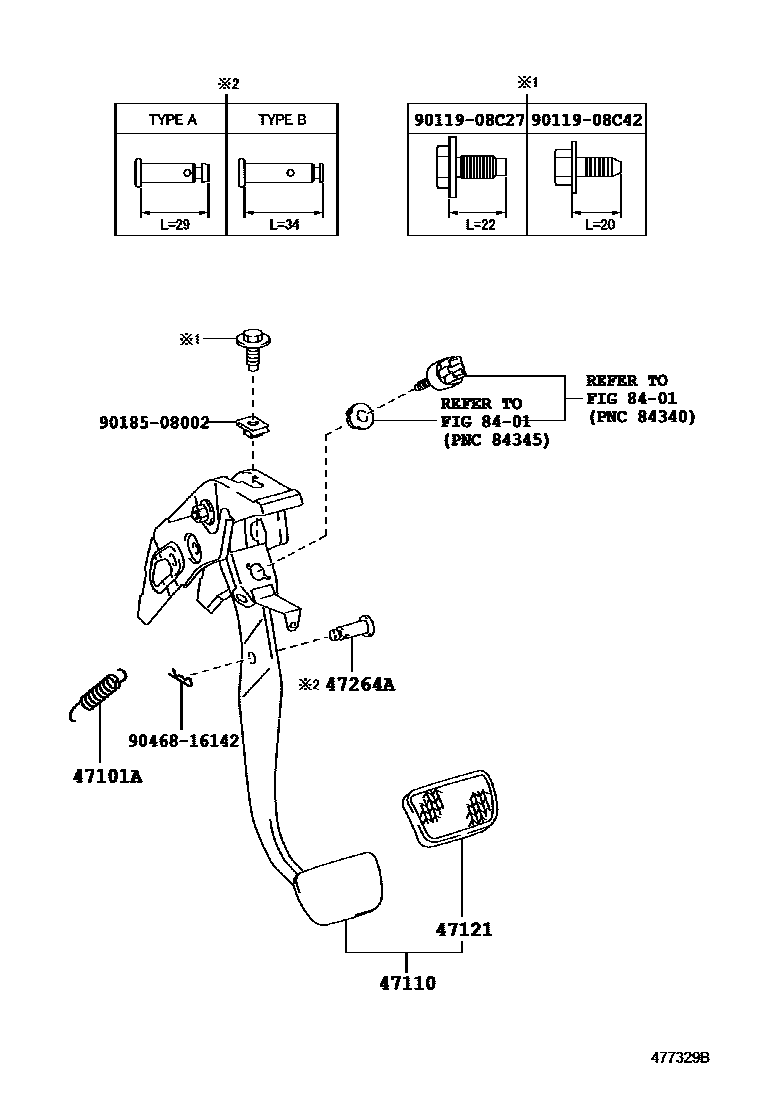

Toyota ZELAS — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13010iAGT20201008-201607

47110SUPPORT ASSY, BRAKE PEDAL

main47110-21050iAGT20..6F201008-201304

main47110-21060iAGT20..6FC201008-201607

47121PAD, BRAKE PEDAL

main31321-42010iAGT20..6F201008-201304

main47121-42010iAGT20..6FC201008-201607

47264APIN(FOR PUSH ROD)

main90249-08051iAGT20201008-201607

TYPE A:REFER ILLUST.

main90249-08256iAGT20201008-201607

TYPE B:REFER ILLUST.

8401

9011908C27

main90119-08C27

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9 parts on this diagram · 1 diagram in section
