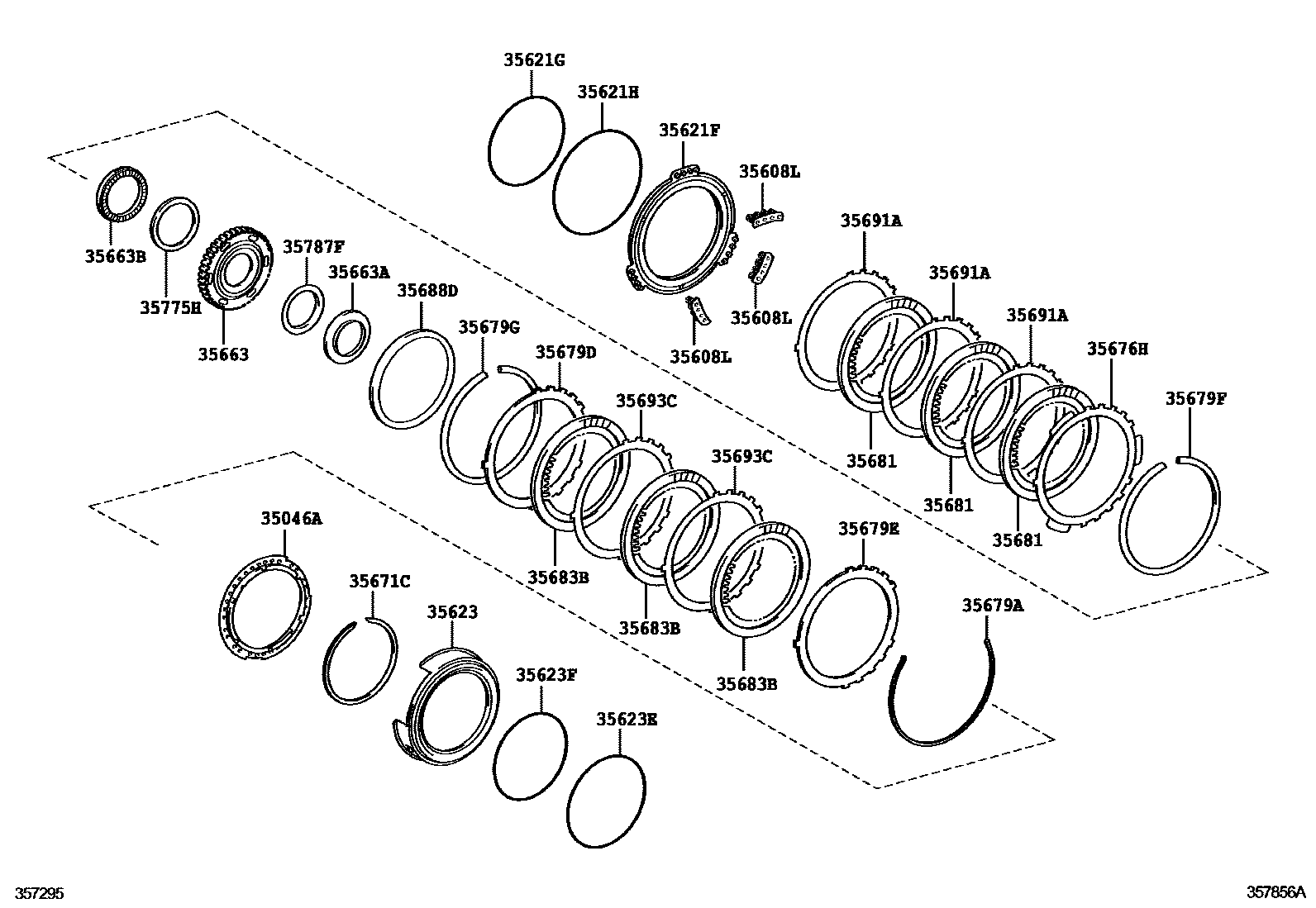

Toyota ZELAS — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35046ASPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35621GRING, O (FOR BRAKE PISTON INNER)
35621HRING, O (FOR BRAKE PISTON OUTER)
35623ERING, O, NO.1 (FOR BRAKE PISTON)
35623FRING, O, NO.2 (FOR BRAKE PISTON)
35663HUB, BRAKE NO.3
*349
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35676HFLANGE, BRAKE, NO.1
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
T=3.6,MARK 36
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
35679DFRANGE, BRAKE, NO.2
35679EFRANGE, BRAKE, NO.3
T=3.8,MARK 38
T=3.9,MARK 39
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=4.4,MARK 44
35679FRING, SNAP(FOR BRAKE FLANGE)
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35681DISC, BRAKE, NO.1
35683BDISC, BRAKE, NO.3
35688DSTOPPER, BRAKE SNAP RING
35691APLATE, BRAKE, NO.1
35693CPLATE, BRAKE, NO.3
35787FRACE, THRUST BEARING, NO.2
25 parts on this diagram · 1 diagram in section
