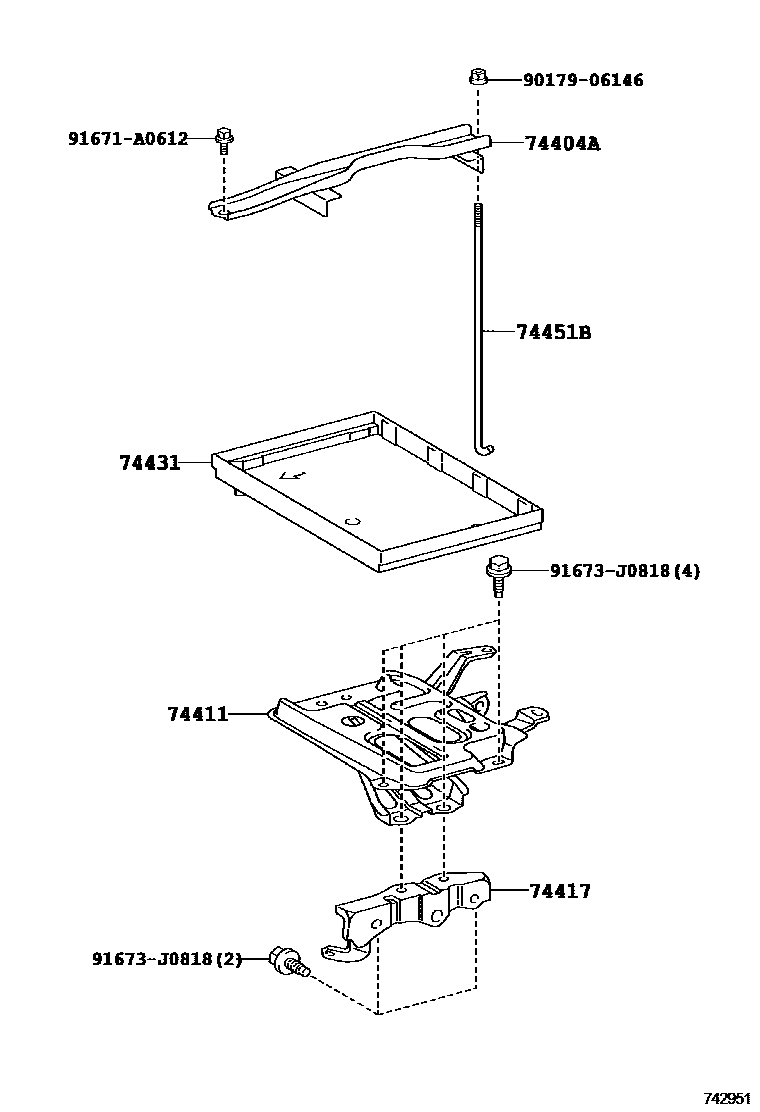

Toyota ZELAS — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-21040iAGT20201008-201607

74411CARRIER, BATTERY

main74410-12020iAGT20201008-201607

74417BRACKET, BATTERY CARRIER

main74401-12010iAGT20201008-201607

74431TRAY, BATTERY

main74431-12100iAGT20..CHI201102-201405

main74431-12120iAGT20..GCC,GEN201008-201607

74451BBOLT, BATTERY CLAMP

main74451-10061iAGT20201507-201607

sub74451-42030

main74451-58011iAGT20201008-201506

9017906146

main90179-06146

91671A0612

main91671-A0612

91673J0818

main91673-J0818

8 parts on this diagram · 1 diagram in section
