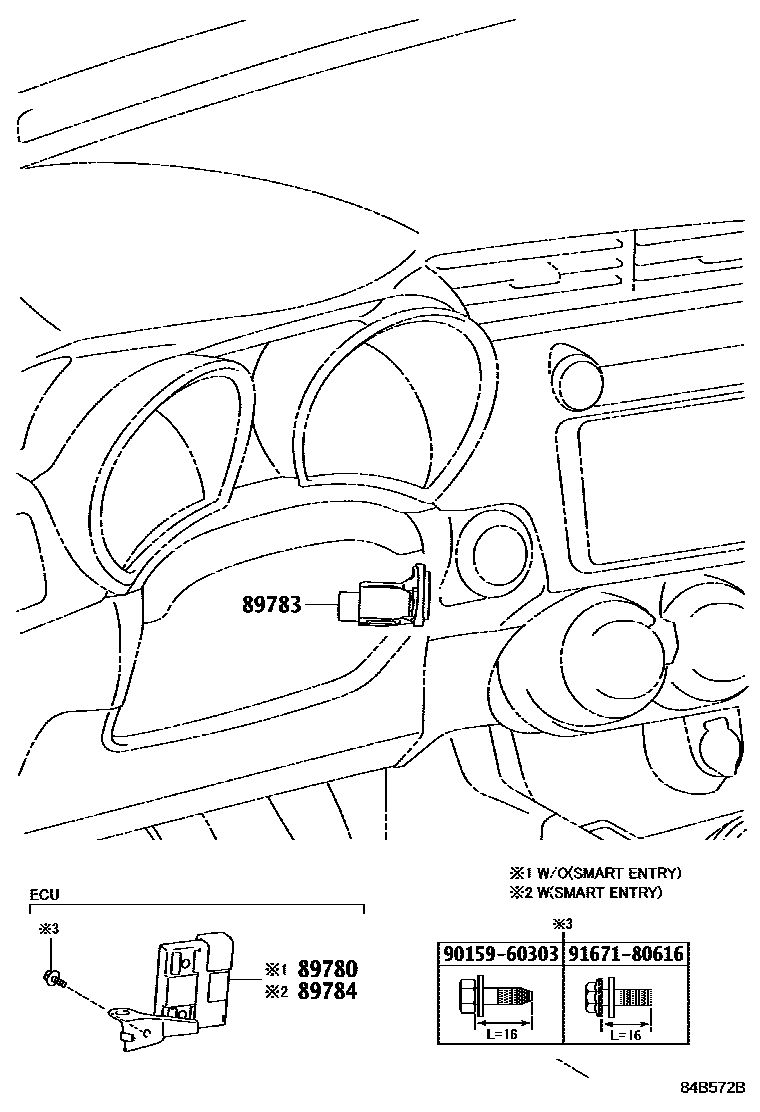

Toyota ZELAS — ANTI-THEFT DEVICE

0001 1 0002 1

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-21040iAGT20..GCC,GEN201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

89783AMPLIFIER, TRANSPONDER KEY

main89783-12110iAGT20201008-201009

sub89783-12111

main89783-12111iAGT20..GCC,GEN201010-201106

sub89783-12112

main89783-12112iAGT20..GCC,GEN201107-201212

sub89783-12113

main89783-12113iAGT20..GCC,GEN201212-201305

sub89783-12114

89784COMPUTER, IMMOBILIZER CODE

main89784-21010iAGT20..CHI201102-201607

9015960303

main90159-60303

9167180616

main91671-80616

5 parts on this diagram · 2 diagrams in section
