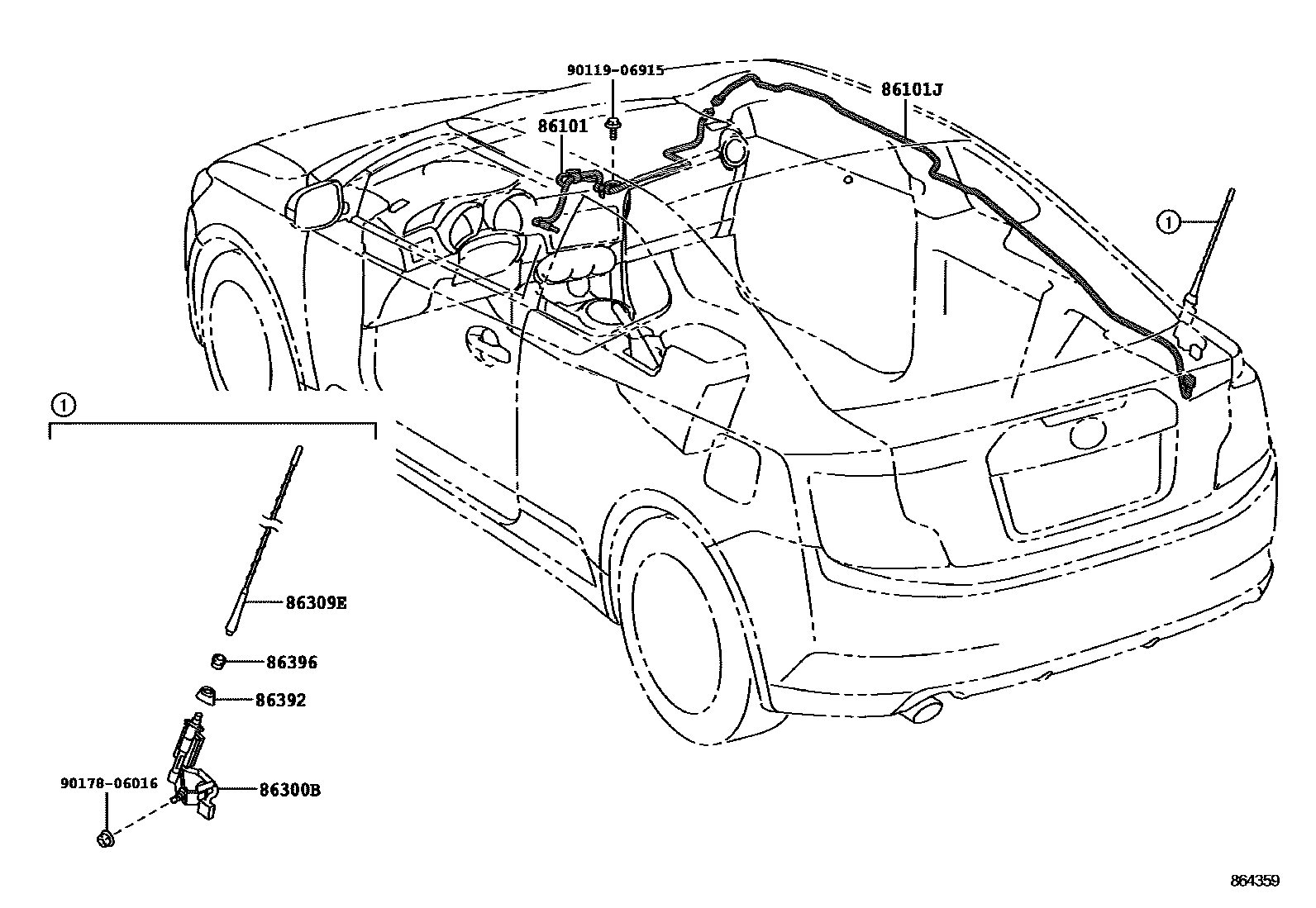

Toyota ZELAS — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-21250iAGT20201008-201306

main86101-21260iAGT20201305-201607

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-21240iAGT20201008-201607

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-21140iAGT20201008-201607

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52040iAGT20201008-201607

86392ORNAMENT, ANTENNA

main86392-21040iAGT20201008-201011

sub86392-21041

main86392-21041iAGT20201012-201607

86396NUT, ANTENNA

main86396-21020iAGT20201008-201607

9011906915

main90119-06915

9017806016

main90178-06016

8 parts on this diagram · 1 diagram in section
