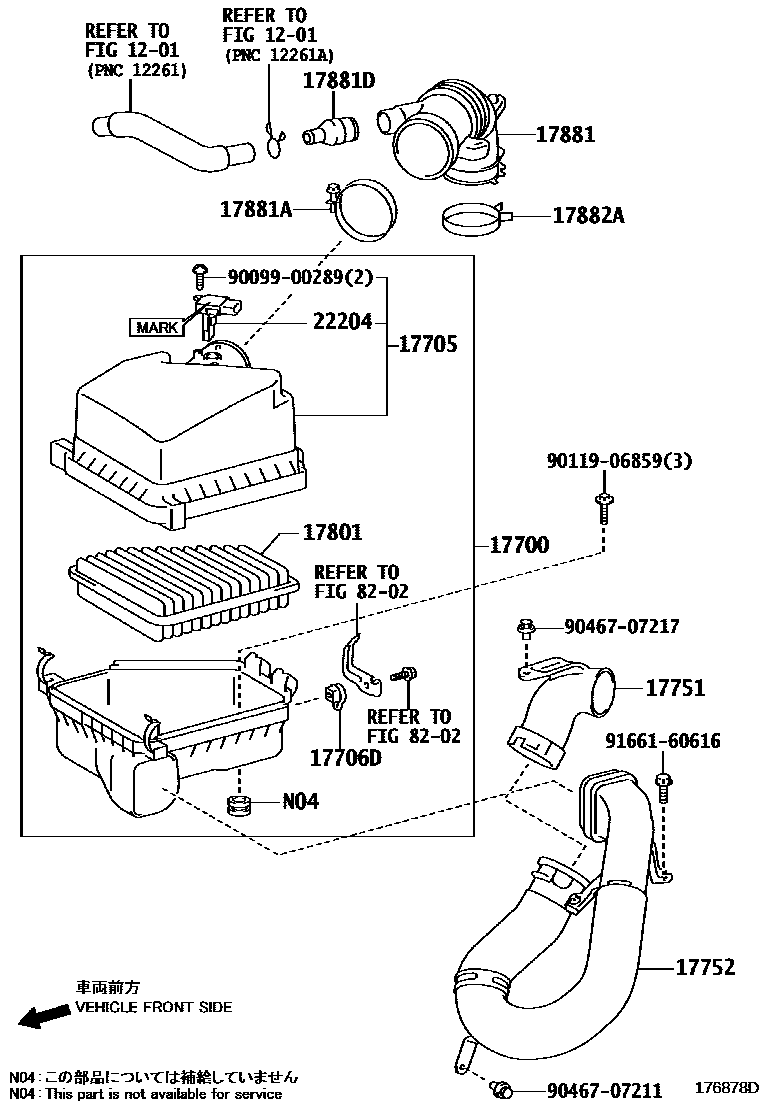

Toyota ZELAS — AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-36220i2ARFE..AGT20201008-201607

17705CAP SUB-ASSY, AIR CLEANER

main17705-36050i2ARFE..AGT20201008-201110

sub17705-36051

main17705-36051i2ARFE..AGT20201111-201607

17706DSTAY SUB-ASSY, AIR CLEANER

main17706-21010i2ARFE..AGT20201008-201607

17751INLET, AIR CLEANER, NO.1

main17751-36030i2ARFE..AGT20201008-201607

17752INLET, AIR CLEANER, NO.2

main17752-31070i2ARFE..AGT20201008-201607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31120i2ARFE..AGT20201008-201607

17881HOSE, AIR CLEANER, NO.1

main17881-36080i2ARFE..AGT20201008-201607

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i2ARFE..AGT20201008-201607

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2ARFE..AGT20201008-201607

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-71001i2ARFE..AGT20201008-201607

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ARFE..AGT20201111-201607

MARK 22204-0T040

sub22204-28010

main22204-0V010i2ARFE..AGT20201111-201607

MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ARFE..AGT20201111-201607

MARK 22204-0V020

main22204-28010i2ARFE..AGT20201111-201607

MARK 22204-28010

main22204-28010i2ARFE..AGT20201008-201110

8202

9009900289

main90099-00289

9011906859

main90119-06859

9046707211

main90467-07211

9046707217

main90467-07217

9166160616

main91661-60616

18 parts on this diagram · 1 diagram in section
