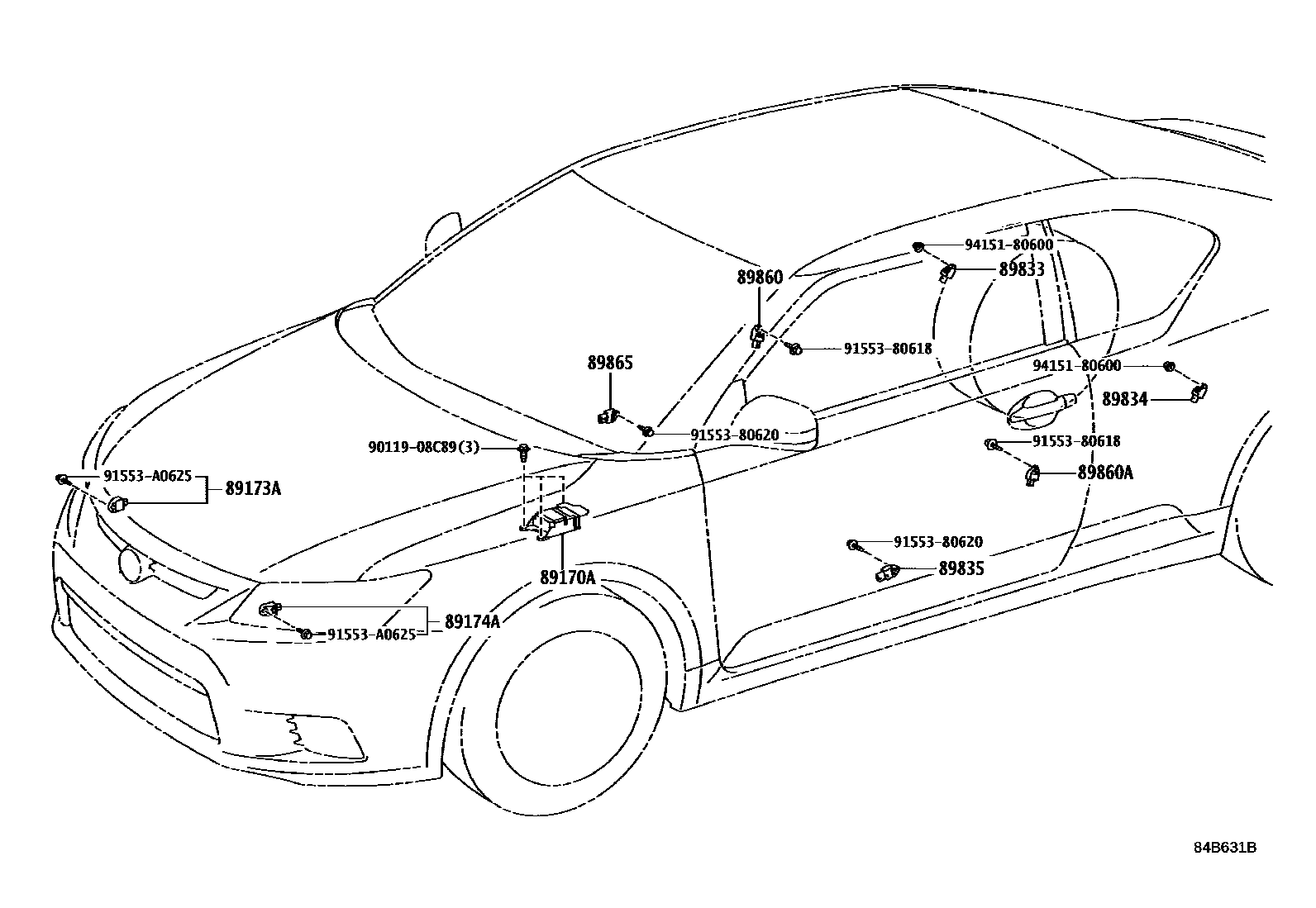

Toyota ZELAS — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-21120iAGT20201008-201306

main89170-21140iAGT20201107-201205

main89170-21170iAGT20201305-201607

89173ASENSOR, AIRBAG, FRONT RH

main89173-19445iAGT20201305-201607

main89173-49465iAGT20201107-201205

main89173-79025iAGT20201008-201306

89174ASENSOR, AIRBAG, FRONT LH

main89173-19445iAGT20201305-201607

main89173-49465iAGT20201107-201205

main89173-79025iAGT20201008-201306

89833SENSOR, AIRBAG, REAR RH

main89831-12020iAGT20201107-201205

main89831-21020iAGT20201305-201607

main89831-75020iAGT20201008-201306

89834SENSOR, AIRBAG, REAR LH

main89831-12020iAGT20201107-201205

main89831-21020iAGT20201305-201607

main89831-75020iAGT20201008-201306

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-21010iAGT20201008-201306

main89831-48020iAGT20201107-201205

main89831-52040iAGT20201305-201607

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iAGT20201107-201205

main89831-52020iAGT20201305-201607

main89831-75010iAGT20201008-201306

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iAGT20201107-201205

main89831-52020iAGT20201305-201607

main89831-75010iAGT20201008-201306

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-21010iAGT20201008-201306

main89831-48020iAGT20201107-201205

main89831-52040iAGT20201305-201607

9011908C89

main90119-08C89

9155380618

main91553-80618

9155380620

main91553-80620

91553A0625

main91553-A0625

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
