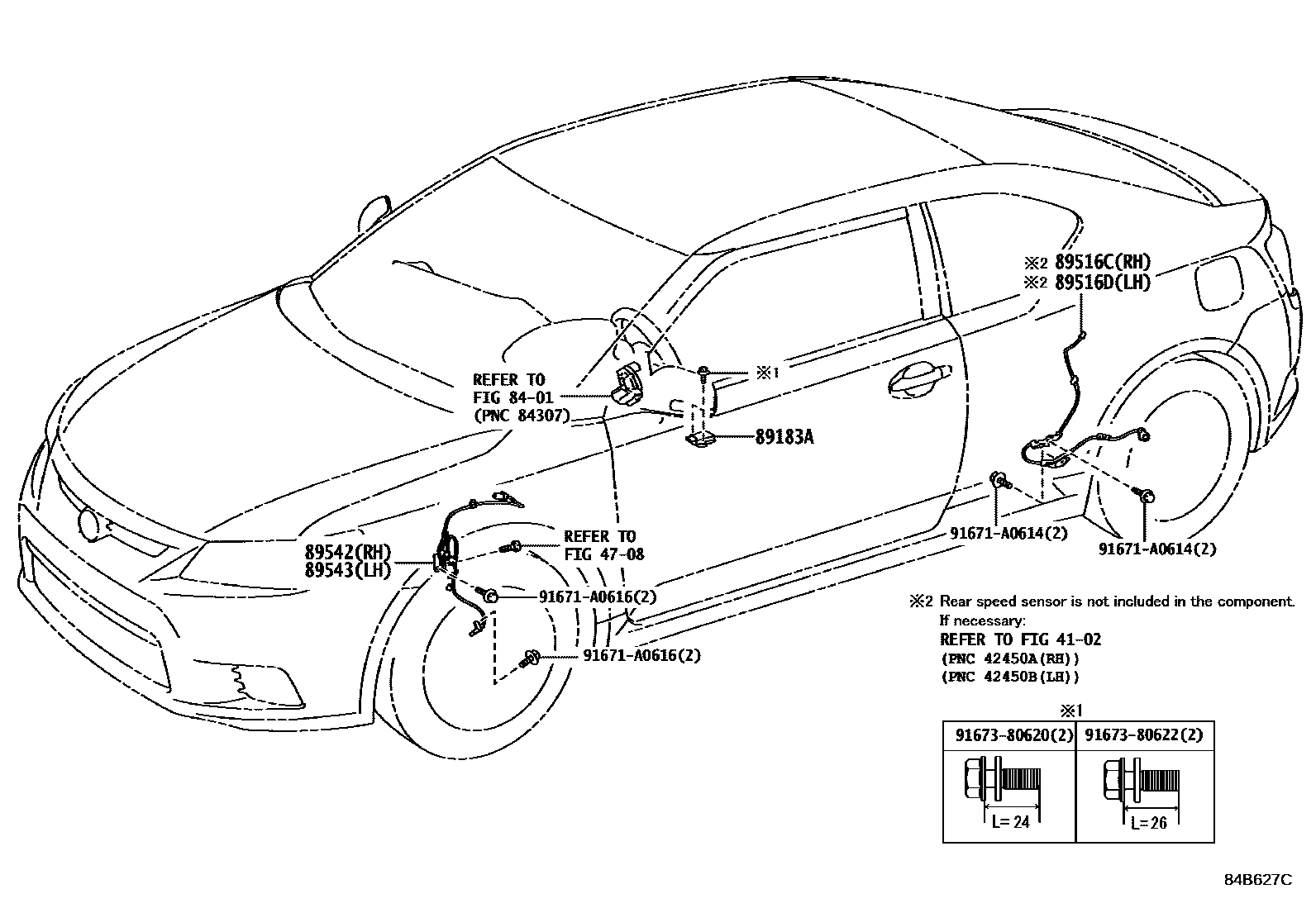

Toyota ZELAS — ABS & VSC

0001 1 0004 1

4102

4708

8401

89183ASENSOR, YAWRATE

main89183-48030iAGT20201008-201306

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12160iAGT20201008-201607

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12170iAGT20201008-201607

89542SENSOR, SPEED, FRONT RH

main89542-12080iAGT20201008-201607

89543SENSOR, SPEED, FRONT LH

main89543-12080iAGT20201008-201607

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9167380620

main91673-80620

9167380622

main91673-80622

12 parts on this diagram · 2 diagrams in section
