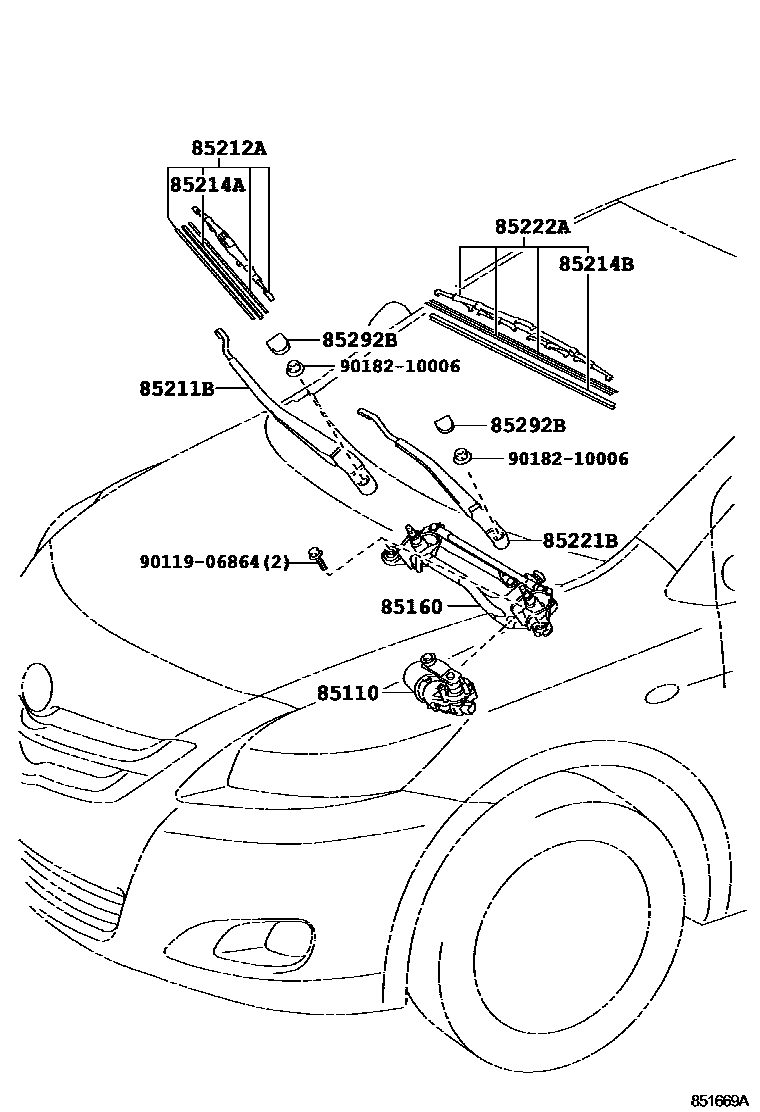

Toyota YARIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52440i200602-200808

85160LINK ASSY, WINDSHIELD WIPER

main85150-52320i200602-200808

85211BARM, FRONT WIPER, RH

main85211-52280i200602-200808

85212ABLADE, FR WIPER, RH

main85212-44031i200602-200603

main85212-44032i200604-200808

85214ARUBBER, WIPER, RH

main85214-68010i200602-200604

main85214-68011i200604-200808

85214BRUBBER, WIPER, LH

main85214-44140i200602-200808

85221BARM, FRONT WIPER, LH

main85221-52280i200602-200808

85222ABLADE, FR WIPER, LH

main85222-47020i200602-200808

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200602-200808

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota YARIS

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota YARIS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
