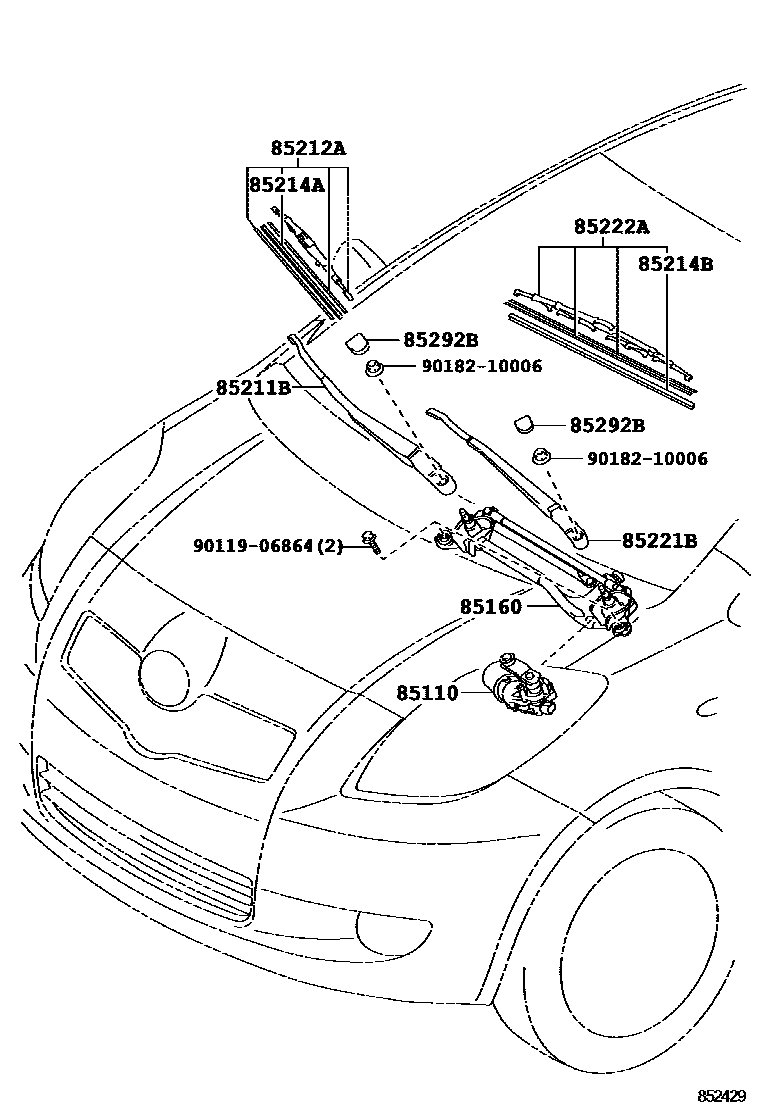

Toyota YARIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52310i200508-200708

main85110-52510i200708-200808

85160LINK ASSY, WINDSHIELD WIPER

main85150-52250i200508-200708

85211BARM, FRONT WIPER, RH

main85211-52240i200508-200708

85212ABLADE, FR WIPER, RH

main85212-44031i200508-200511

main85212-44032i200512-200708

85214ARUBBER, WIPER, RH

main85214-68010i200508-200511

main85214-68011i200512-200708

85214BRUBBER, WIPER, LH

main85214-44140i200508-200708

85221BARM, FRONT WIPER, LH

main85221-52240i200508-200708

85222ABLADE, FR WIPER, LH

main85222-47020i200508-200708

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200508-200708

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota YARIS

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota YARIS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
