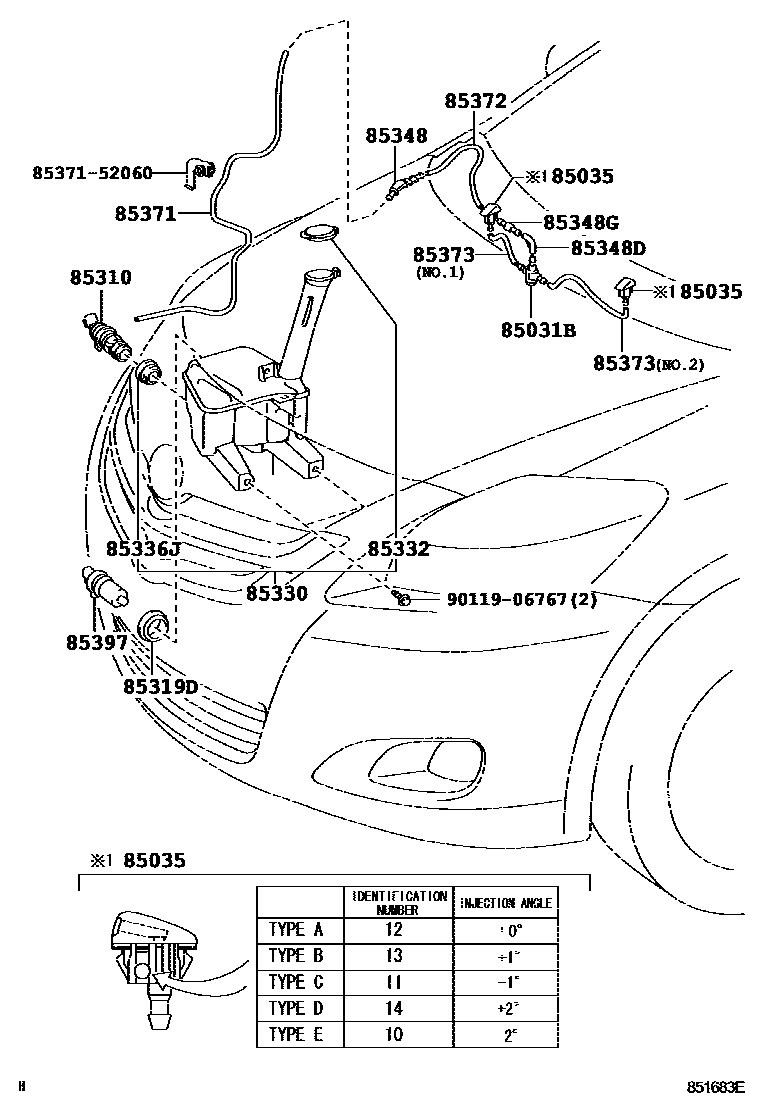

Toyota YARIS — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-30080iNCP93200602-200808

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2iNCP93200602-200808

TYPE A:REFER ILLUST.

main85381-52280×2iNCP93200808

TYPE B:REFER ILLUST.

main85381-52290×2iNCP93200602-200808

TYPE C:REFER ILLUST.

main85381-52300×2iNCP93200602-200808

TYPE D:REFER ILLUST.

main85381-52310×2iNCP93200602-200808

TYPE E:REFER ILLUST.

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iNCP93200808

85319DPACKING, FRONT WASHER

main85319-33230iNCP93..CND200808-201208

85330JAR ASSY, WINDSHIELD WASHER

main85315-52251supersedes 85315-52210iNCP93..USA200602-200808

COLD AREA SPEC

85332CAP, WINDSHIELD WASHER JAR

main85316-16070supersedes 85316-52190iNCP93..USA200602-200808

COLD AREA SPEC

85336JPROTECTOR, WASHER JAR

main85336-60300iNCP93200602-200808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52390iNCP93200602-200808

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iNCP93200602-200808

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNCP93200602-200808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080supersedes 90099-33080iNCP93..USA200602-200808

L=1450(*H,L=780)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNCP93200602-200808

L=1450(*H,L=540)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP93200602-200808

L=1450(*H,L=410),NO.1,NO.2

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iNCP93..USA200602-200808

COLD AREA SPEC

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section
