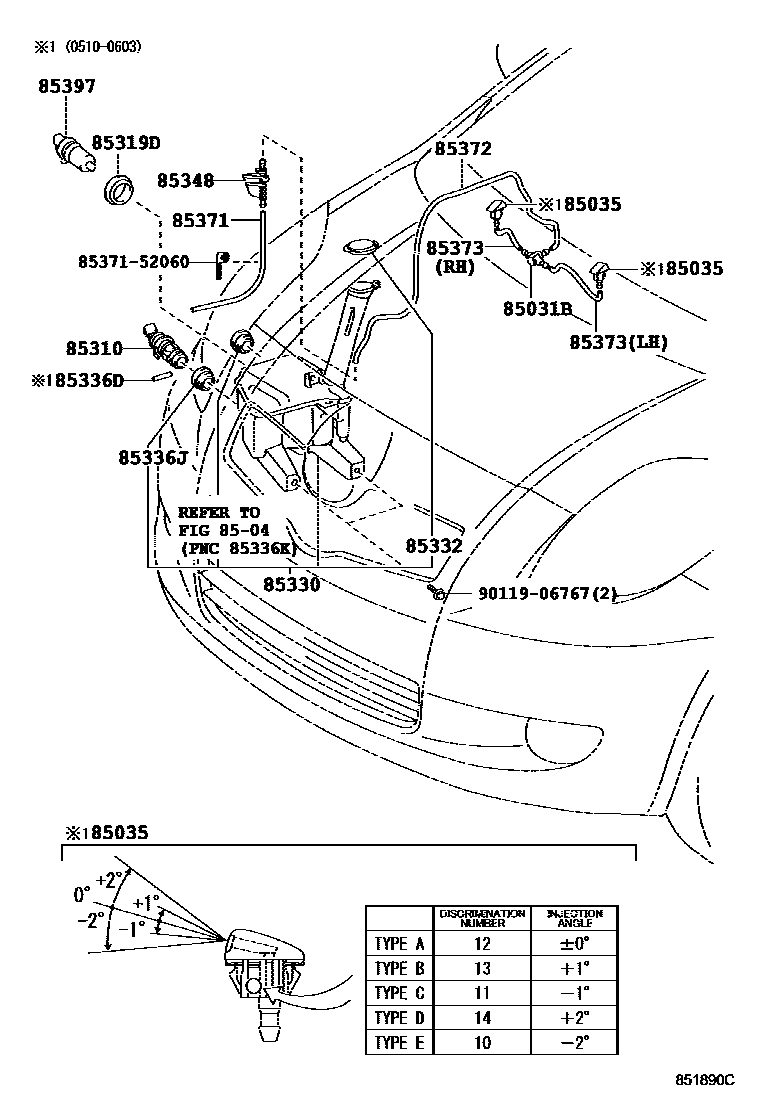

Toyota YARIS — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-30080i200708-200808

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2i200708-200808

TYPE A:REFER ILLUST.

main85381-52280×2i200508-200708

TYPE B:REFER ILLUST.

main85381-52290×2i200508-200708

TYPE C:REFER ILLUST.

main85381-52300×2i200708-200808

TYPE D:REFER ILLUST.

main85381-52310×2i200708-200808

TYPE E:REFER ILLUST.

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200708-200808

85319DPACKING, FRONT WASHER

main85319-33230i200808

COLD SPEC

85330JAR ASSY, WINDSHIELD WASHER

main85315-52180i200508-200509

COLD SPEC

main85315-52182i200510-200708

COLD SPEC

main85315-52200i200508-200509

REAR WINDOW WIPER-WITHOUT

main85315-52202supersedes 85315-52190i200510-200602

REAR WINDOW WIPER-WITHOUT

main85315-52210supersedes 85315-52190i200808-201107

REAR WINDOW WIPER-WITHOUT

main85315-52251supersedes 85315-52190i200708-200808

REAR WINDOW WIPER-WITHOUT

85332CAP, WINDSHIELD WASHER JAR

main85316-16070supersedes 85316-52190i200808-201107

COLD SPEC&REAR WINDOW WIPER-WITHOUT

85336DPACKING, WINDSHIELD WASHER JAR

main85336-52182i200510-200603

COLD SPEC&REAR WINDOW WIPER-WITHOUT

85336JPROTECTOR, WASHER JAR

main85336-60300i200508-200708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52361i200508-200708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080supersedes 90099-33080i200708-200808

L=1450(*H,L=860),COLD SPEC

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200508-200708

L=1450(*H,L=780)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200708-200808

L=1450(*H,L=330),RH

main90099-33299i200708-200808

L=1000(*H,L=315),LH

85397SWITCH ASSY,LEVEL WARNING

main85397-33230i200708-200808

COLD SPEC&REAR WINDOW WIPER-WITHOUT

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section
