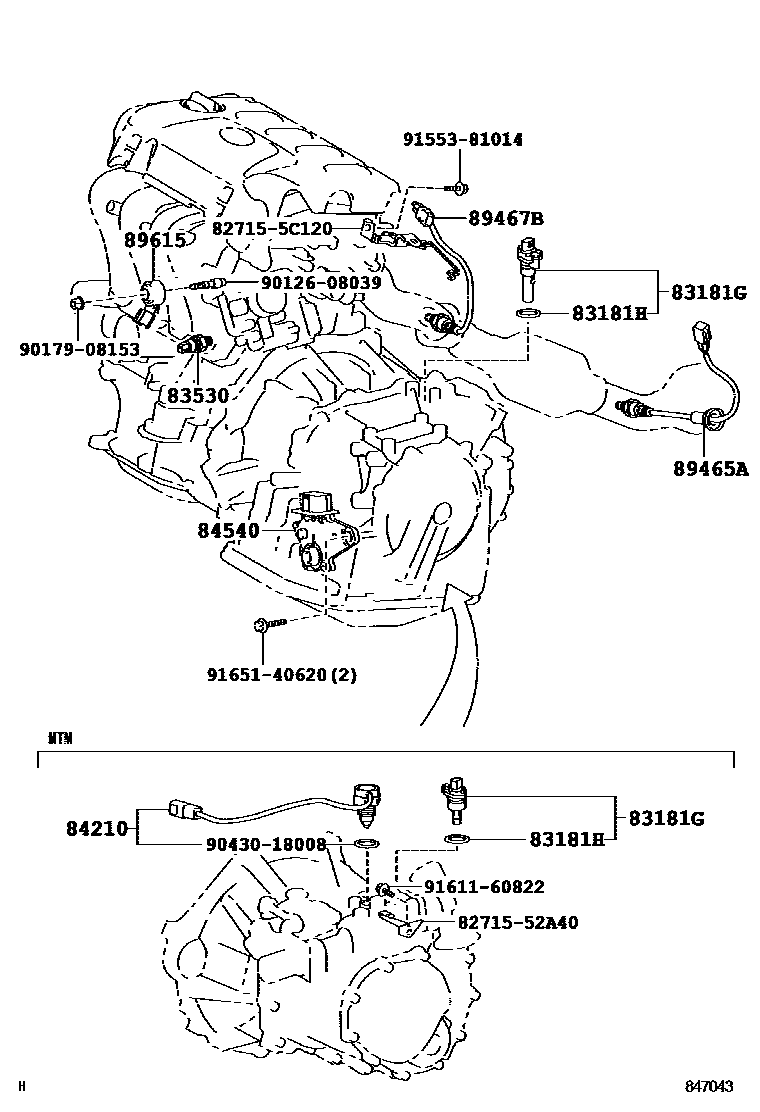

Toyota YARIS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83181GSENSOR, SPEEDOMETER

main83181-12020iNCP91..5F200508-201108

main83181-12040iNCP91..4FC200508-201108

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNCP91..4FC200508-201108

main96711-24030iNCP91..5F200508-201108

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP91200508-201107

DENSO

main83530-60020iNCP91200508-201107

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP91..5F200508-201108

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP91..4FC200508-201108

89465ASENSOR, OXYGEN NO.2

main89465-52430iNCP91200508-201108

89467BSENSOR, AIR FUEL RATIO

main89467-52020iNCP91200508-201107

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP91200508-201107

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

827155C120BRACKET,WIRING HARNESS CLAMP

main82715-5C120

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9155381014

main91553-81014

9161160822

main91611-60822

9165140620

main91651-40620

16 parts on this diagram · 7 diagrams in section
